Brakes - ABS: repairs › Front
Brakes and ABSFront

Front

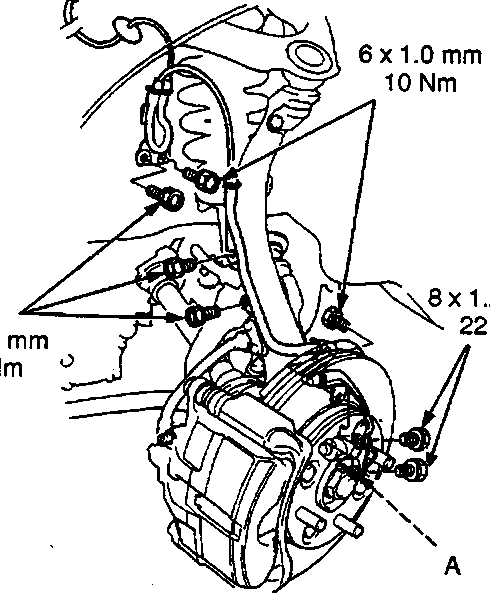

Diagram of front wheel sensor assembly showing mounting bolts with torque specifications 6 x 1.0 mm 10 Nm and 8 x 1.25 mm 22 Nm, labeled A Front wheel sensor.

70M 0200

A Front wheel sensor

Rear

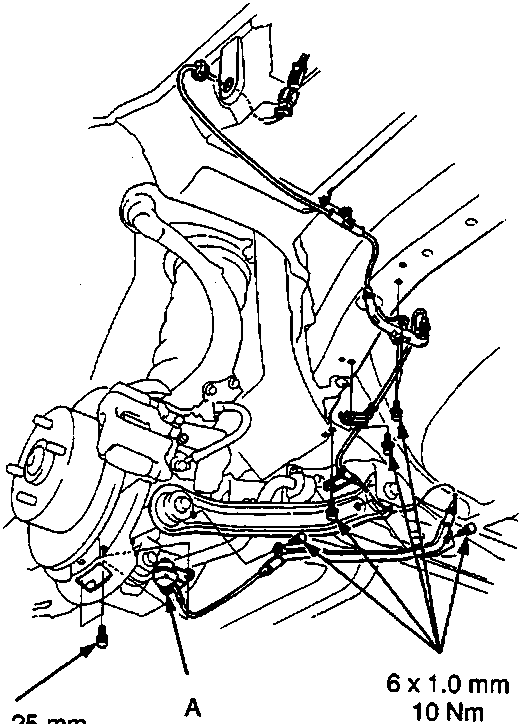

Diagram of rear wheel sensor assembly showing mounting bolts with torque specifications 6 x 1.0 mm 10 Nm and 8 x 1.25 mm 22 Nm, labeled A Rear wheel sensor.

70M 0201

A Rear wheel sensor

Note:

  • Be careful when installing the sensors to avoid twisting the wires.
  • After sensor replacement, confirm correct operation.

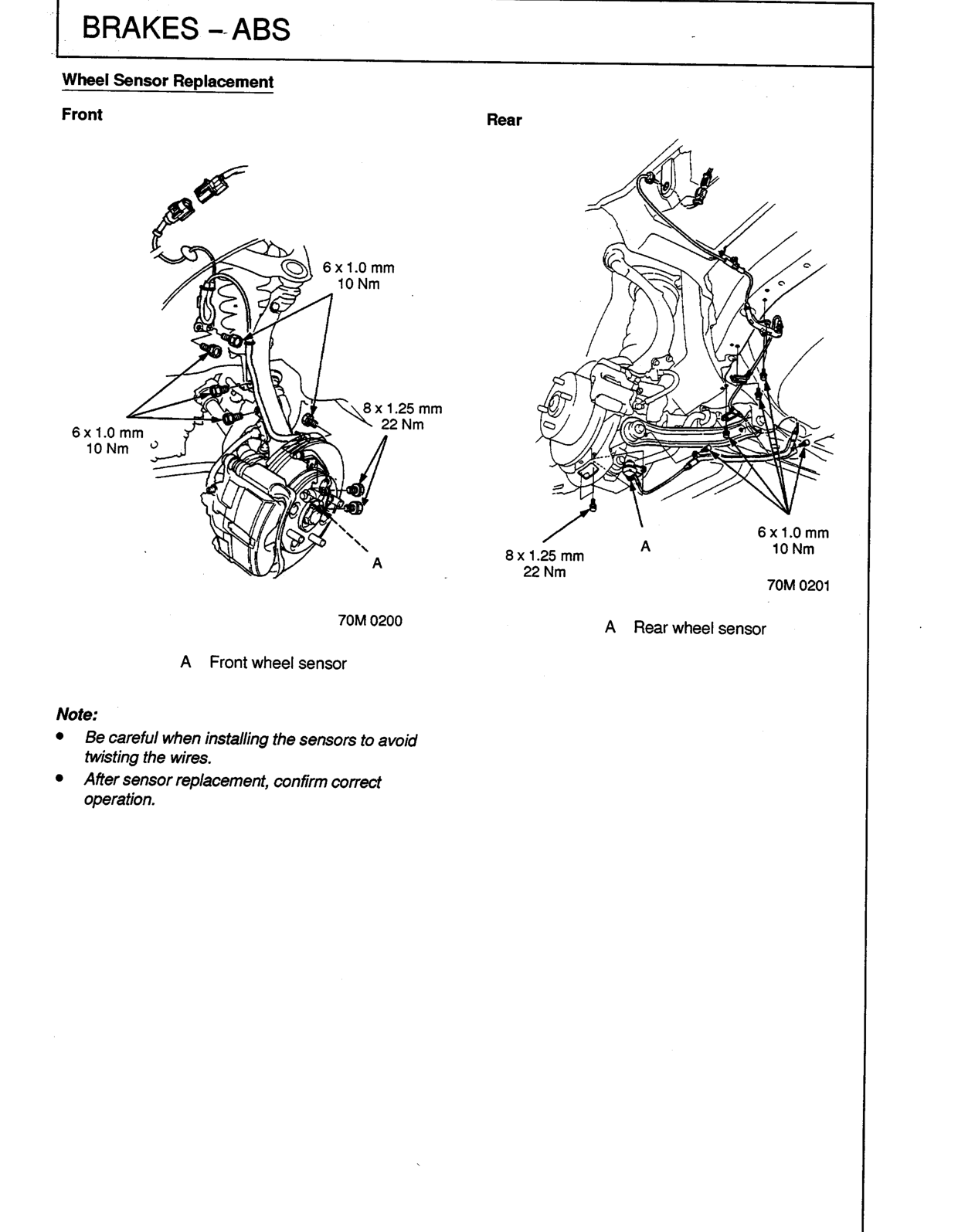

Original page
