Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition14 · Brakes and ABS
14 · Brakes

Original page

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Brakes - ABS: repairs › Original page

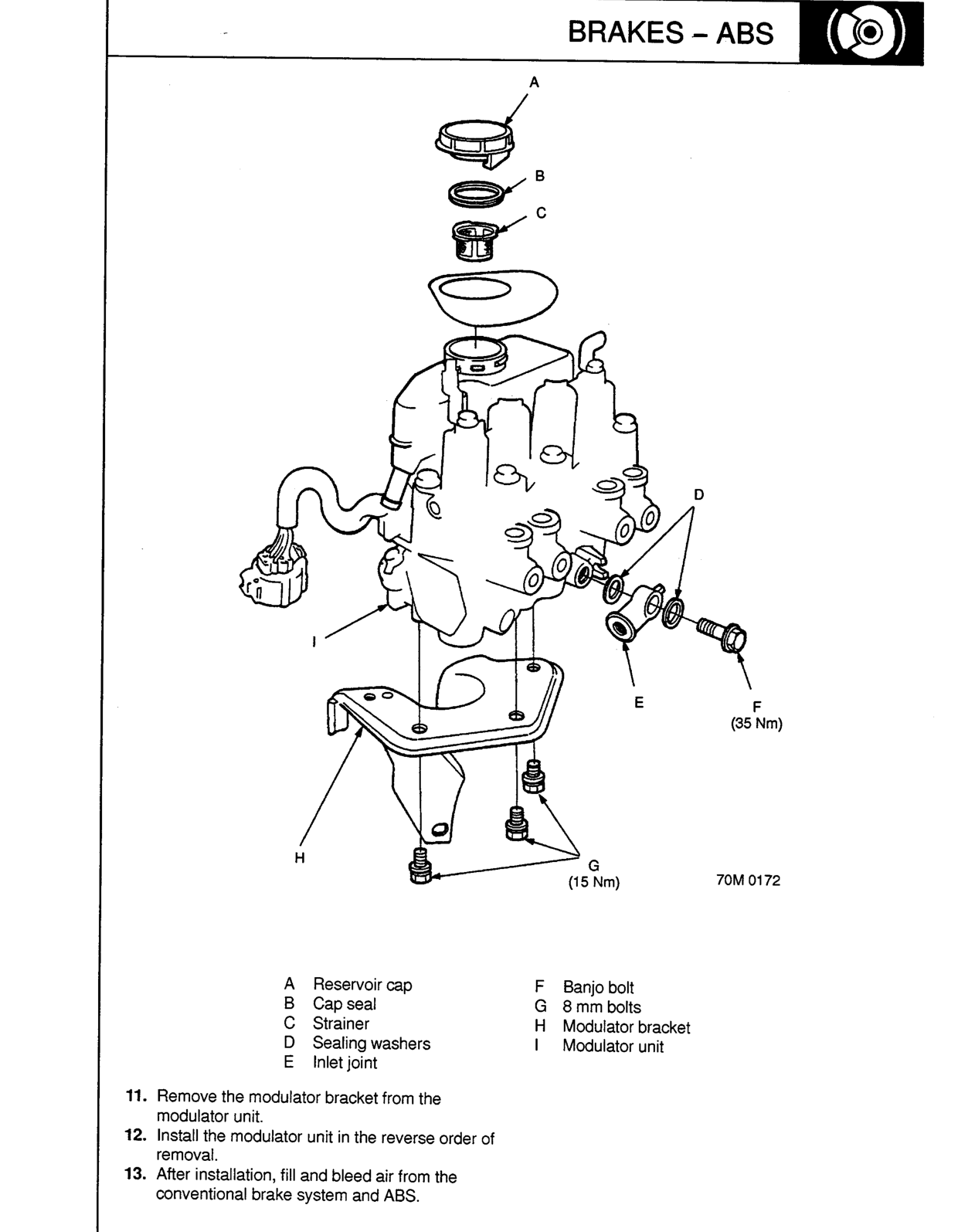

Brakes and ABSOriginal page

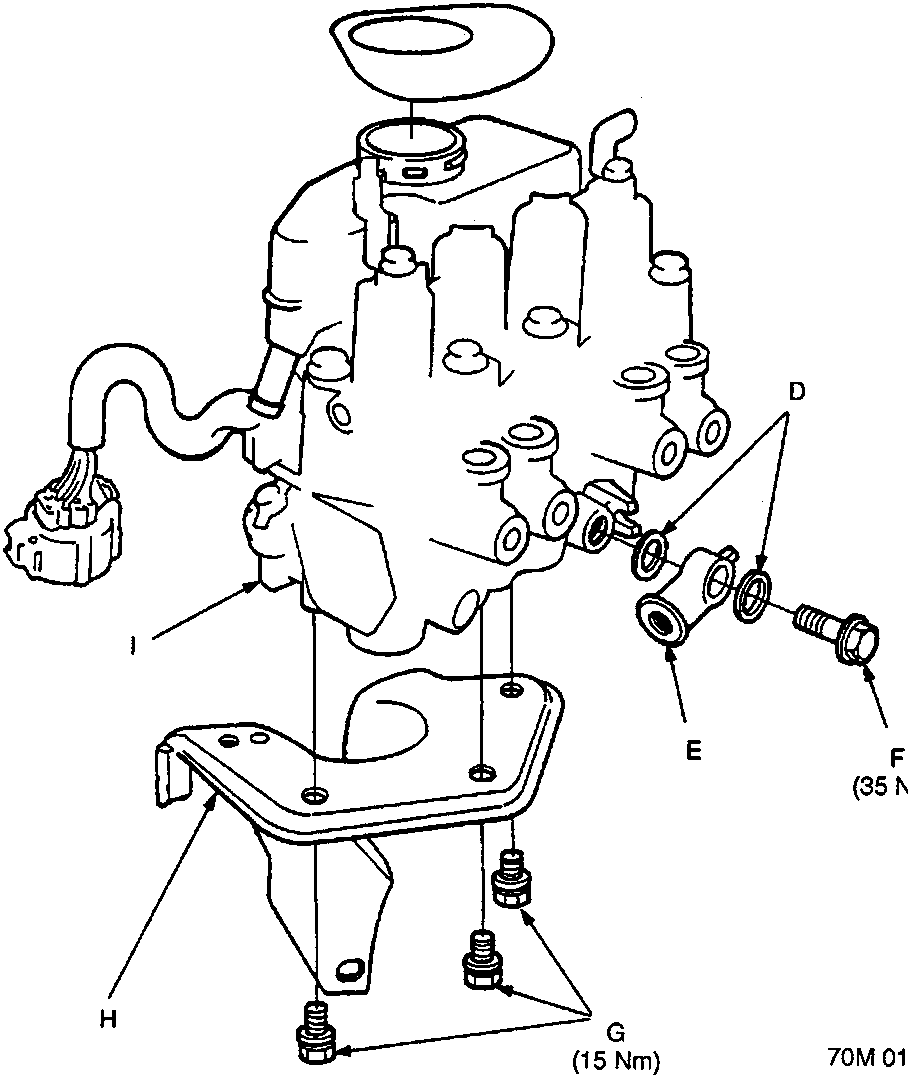

Exploded view diagram of the ABS modulator unit showing the reservoir cap, seal, strainer, inlet joint, sealing washers, banjo bolt, mounting bolts, bracket and modulator unit assembly with torque specifications.
  • A Reservoir cap
  • B Cap seal
  • C Strainer
  • D Sealing washers
  • E Inlet joint
  • F Banjo bolt
  • G 8 mm bolts
  • H Modulator bracket
  • I Modulator unit
  1. 11. Remove the modulator bracket from the modulator unit.
  2. 12. Install the modulator unit in the reverse order of removal.
  3. 13. After installation, fill and bleed air from the conventional brake system and ABS.
