MASTER CYLINDER

Disassembly

CAUTION:

  • Do not allow brake fluid to come into contact with paintwork as it will cause surface damage. If brake fluid does contact the paint, wash it off immediately with water.
  • Clean all parts in brake fluid and air dry; blow out all passages with compressed air.

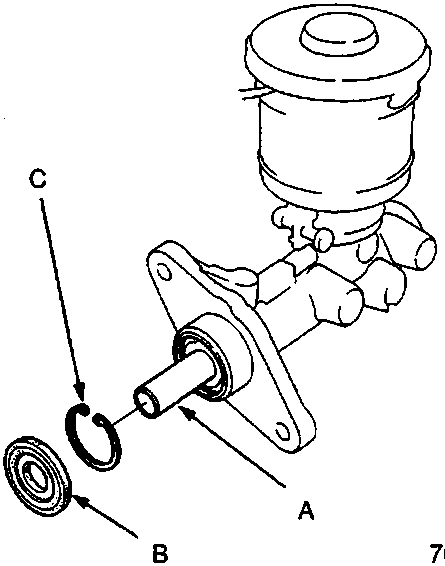

Master cylinder showing secondary piston, rod seal, and circlip removed from the assembly
  1. Remove the master cylinder.
  2. Remove the rod seal.
  3. Remove the circlip while pushing in the secondary piston.
  • A Secondary piston
  • B Rod seal
  • C Circlip

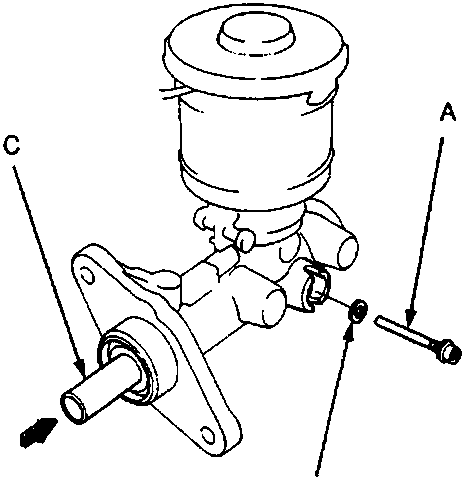

Master cylinder showing stop bolt, sealing washer, and secondary piston being removed
  1. Remove the stop bolt while pushing in the secondary piston.
  • A Stop bolt
  • B Sealing washer
  • C Secondary piston

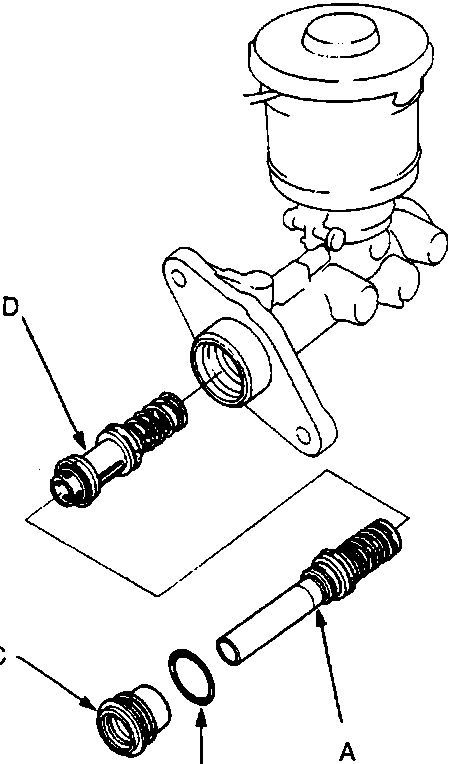

Master cylinder showing primary piston assembly, secondary piston assembly, O-ring, and piston guide removed
  • A Secondary piston assembly
  • B O-ring
  • C Piston guide
  • D Primary piston assembly
  1. Remove the piston guide, secondary piston assembly and primary piston assembly.
