Brakes - ABS: repairs › Hydraulic connections
Brakes and ABSHydraulic connections

HYDRAULIC CONNECTIONS

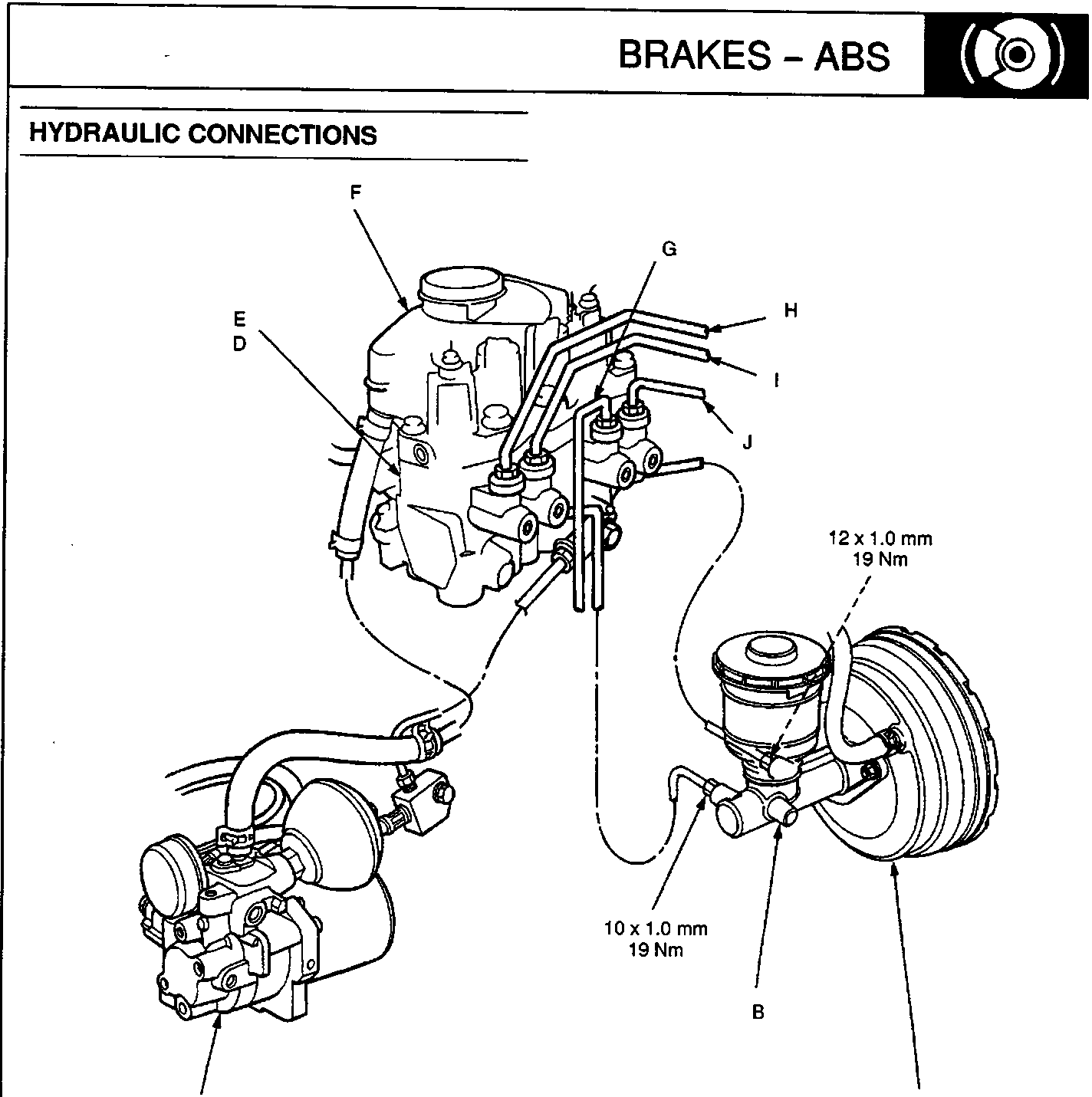

Diagram of hydraulic connections showing brake booster, master cylinder, ABS pump assembly, solenoids, modulator unit, reservoir, and brake lines with torque specifications.

CAUTION: Do not allow brake fluid to come into contact with paintwork as it will cause surface damage. If brake fluid does contact the paint, wash it off immediately with water.

ABrake boosterFReservoir
BMaster cylinderGTo right rear brake
CABS Pump assemblyHTo right front brake
DSolenoidsITo left rear brake
EModulator unitJTo left front brake
