Reassembly

Reassembly

CAUTION:

• Do not allow brake fluid to come into contact with paintwork as it will cause surface damage. If brake does contact the paint, wash it off immediately with water.
• Clean all parts in brake fluid and air dry; blow out all passages with compressed air.
• Before reassembling, check that all parts are free of dust and other foreign particles.
• Make sure no dirt or other foreign matter is allowed to contaminate the brake fluid.
• Do not mix different brands of brake fluid as they may not be compatible.
• Do not reuse the drained fluid. Use only clean DOT 4 brake fluid.
• Replace the master cylinder if the bore is damaged or worn. Do not attempt to repair the bore.

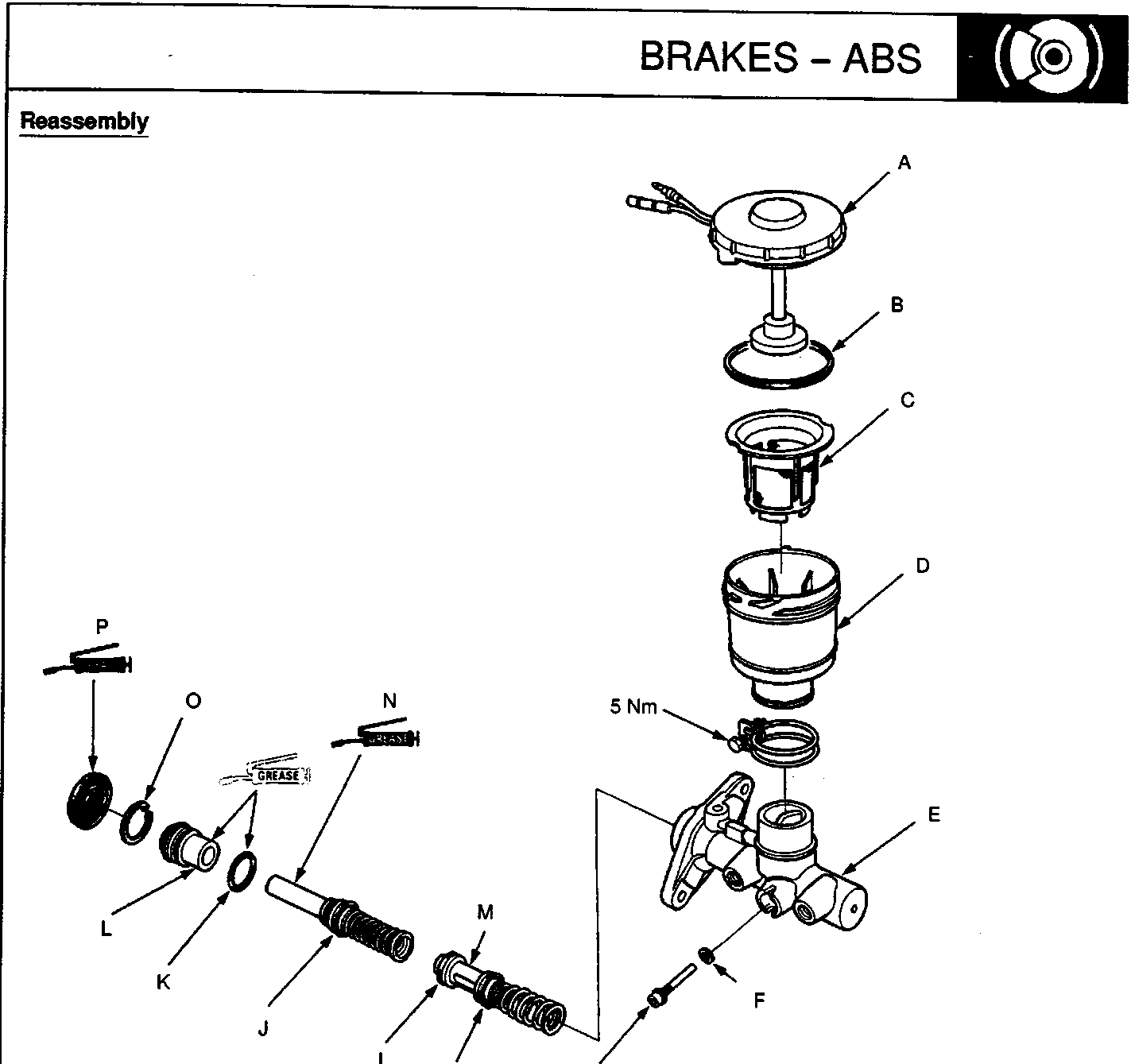

1. A Reservoir cap
2. B Reservoir seal
3. C Strainer
4. D Reservoir
5. E Master cylinder
6. F Sealing washer
7. G Stop bolt
8. H Piston cup
9. I Pressure cup
10. J Piston cup
11. K O-ring
12. L Piston guide
13. M Primary piston assembly
14. N Secondary piston assembly
15. O Circlip
16. P Rod seal
