Reassembly (page 2 of 3)

Note:

• Coat new piston cups, pressure cup and master cylinder bore with clean brake fluid.
• Use recommended greases in the master cylinder seal set.

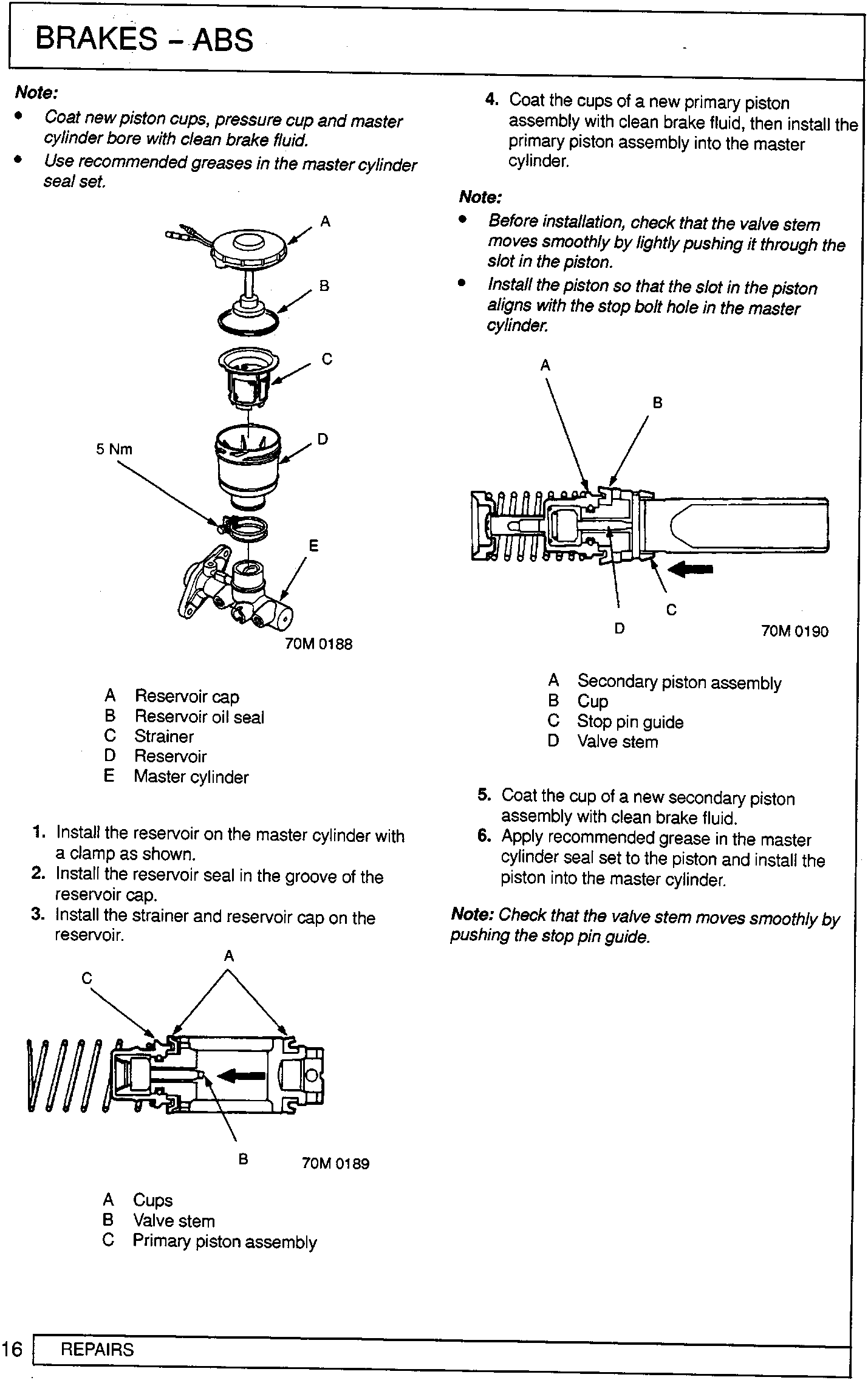

1. A Reservoir cap
2. B Reservoir oil seal
3. C Strainer
4. D Reservoir
5. E Master cylinder
6. Install the reservoir on the master cylinder with a clamp as shown.
7. Install the reservoir seal in the groove of the reservoir cap.
8. Install the strainer and reservoir cap on the reservoir.

1. A Cups
2. B Valve stem
3. C Primary piston assembly
4. Coat the cups of a new primary piston assembly with clean brake fluid, then install the primary piston assembly into the master cylinder.

Note:

• Before installation, check that the valve stem moves smoothly by lightly pushing it through the slot in the piston.
• Install the piston so that the slot in the piston aligns with the stop bolt hole in the master cylinder.

1. A Secondary piston assembly
2. B Cup
3. C Stop pin guide
4. D Valve stem

5. Coat the cup of a new secondary piston assembly with clean brake fluid.
6. Apply recommended grease in the master cylinder seal set to the piston and install the piston into the master cylinder.

Note: Check that the valve stem moves smoothly by pushing the stop pin guide.
