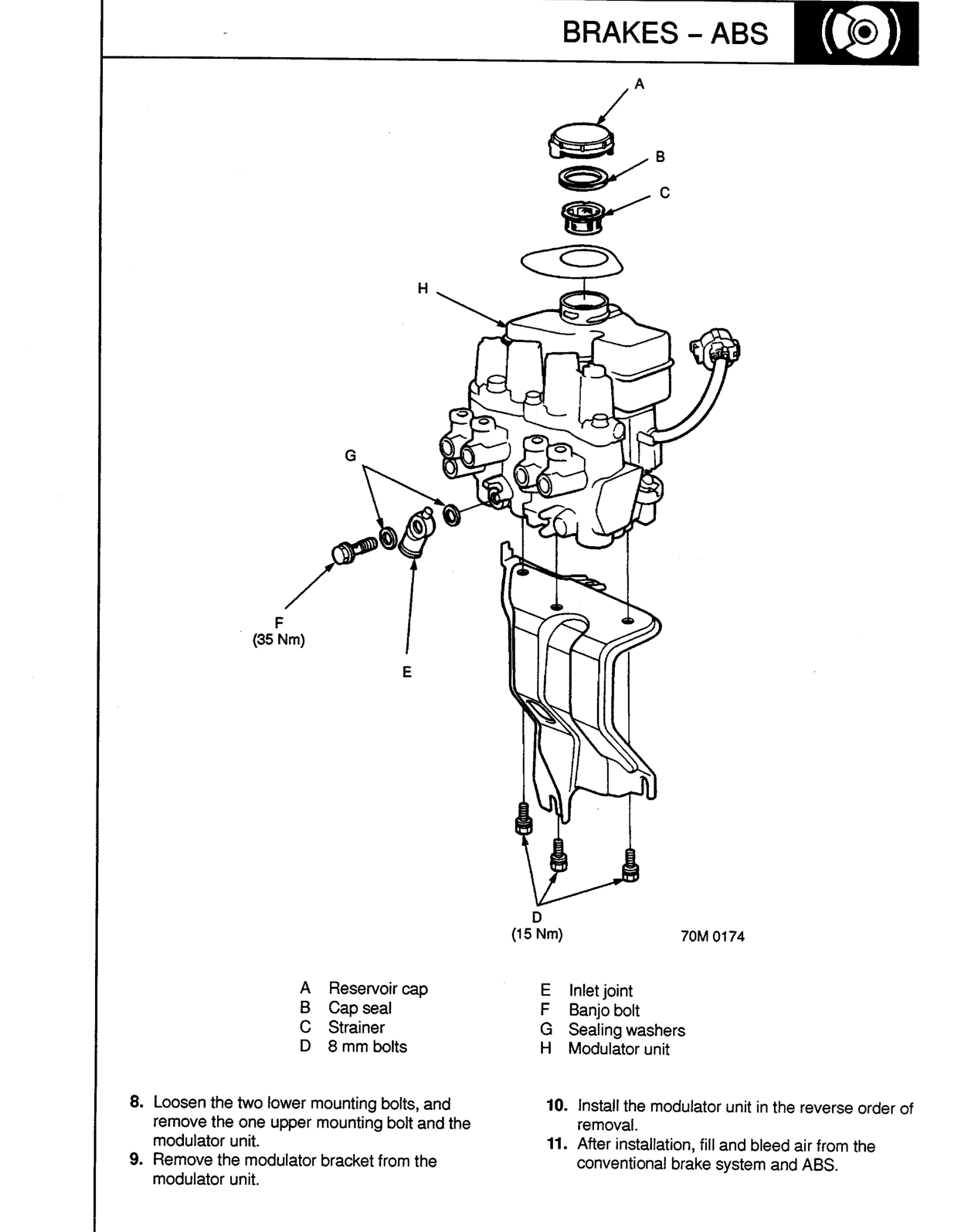

Exploded view of the reservoir cap, cap seal and strainer components
  1. Reservoir cap
  2. Cap seal
  3. Strainer

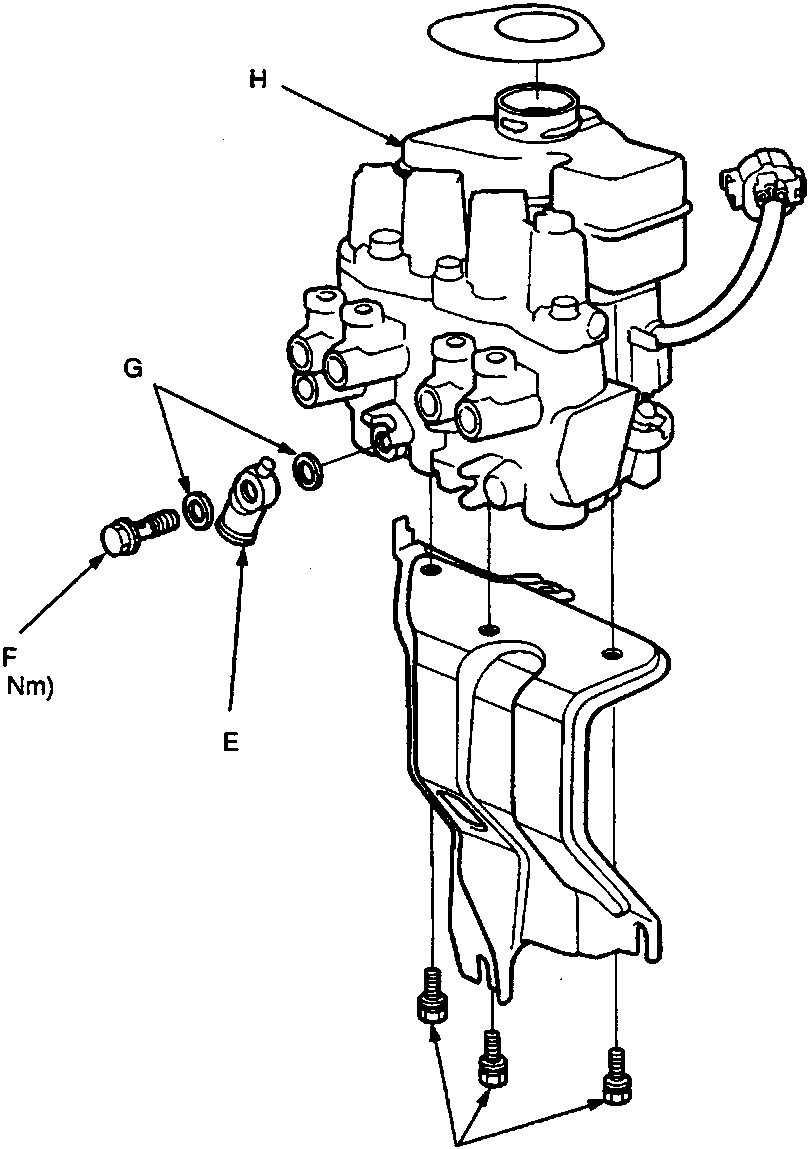

Exploded view of the modulator unit showing the inlet joint, banjo bolt, sealing washers, mounting bolts and bracket
  1. Inlet joint
  2. Banjo bolt
  3. Sealing washers
  4. 8 mm bolts
  5. Modulator unit

35 Nm

15 Nm

  1. Loosen the two lower mounting bolts, and remove the one upper mounting bolt and the modulator unit.
  2. Remove the modulator bracket from the modulator unit.
  3. Install the modulator unit in the reverse order of removal.
  4. After installation, fill and bleed air from the conventional brake system and ABS.
