Cylinder head/valve train: repairs › Camshaft TDC position:
EngineCamshaft TDC position:

CAMSHAFT TDC POSITION:

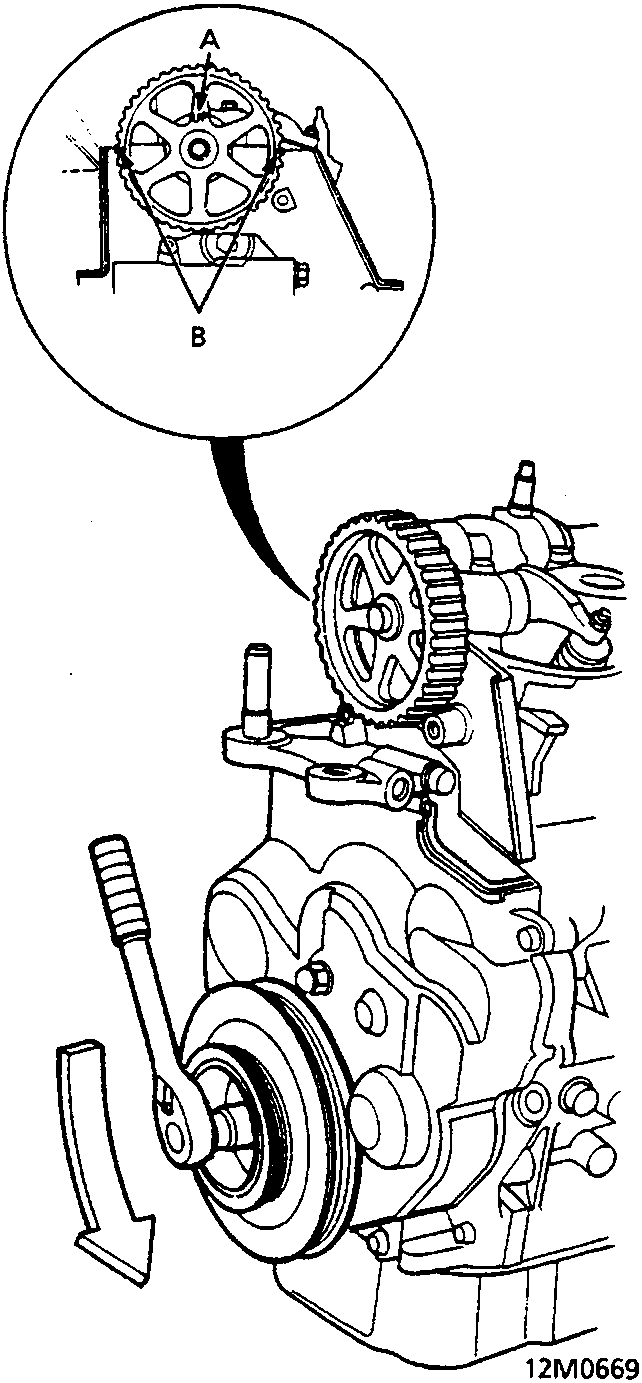

Diagram of camshaft gear and timing belt with callout labels A and B, and a crankshaft pulley with a wrench applying torque.
  1. A "UP" mark
  2. B TDC mark aligned with the cylinder head upper surface.

Note:

  • install the timing belt with the No 1 piston at TDC compression.
  • After installing retorque the crankshaft pulley bolt.
  • Turn the crankshaft in the direction of the arrow.

CRANKSHAFT TDC POSITION:
Manual Transmission

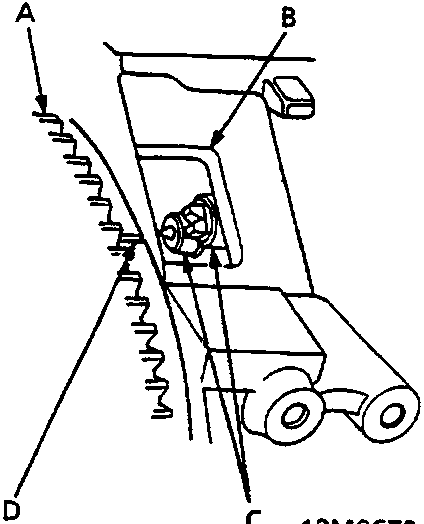

Diagram showing flywheel alignment marks viewed through an inspection hole on the engine block.
  1. A Flywheel
  2. B Inspection hole
  3. C Pointers on block
  4. D TDC mark (white)

CRANKSHAFT TDC POSITION:
Automatic Transmission

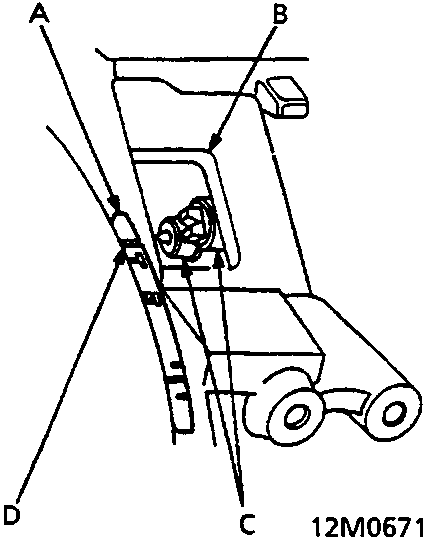

Diagram showing drive plate alignment marks viewed through an inspection hole on the engine block.
  1. A Drive plate
  2. B Inspection hole
  3. C Pointers on block
  4. D TDC mark (white)
