HEAD/VALVE TRAIN

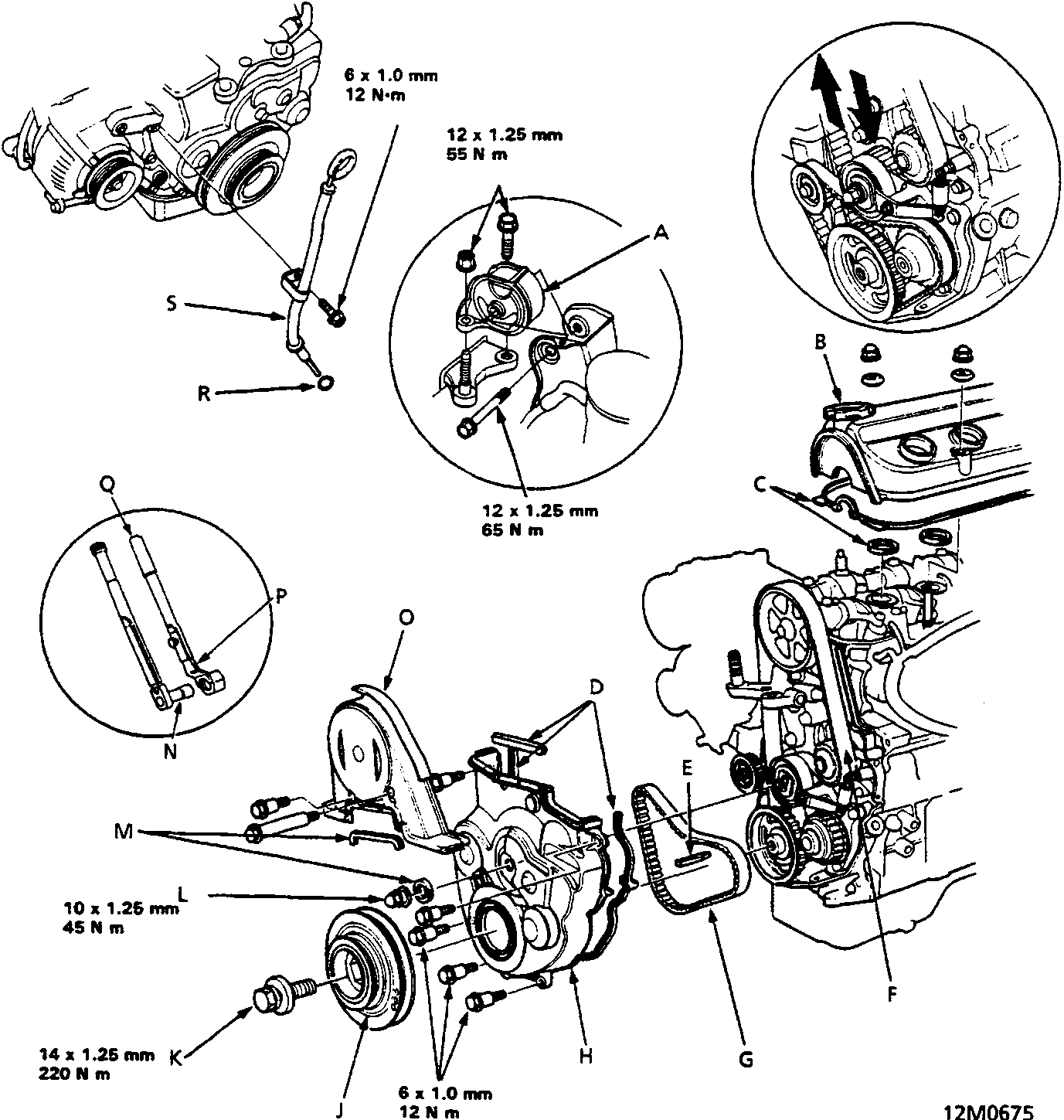

Exploded view diagram of the cylinder head and valve train assembly showing timing belt, covers, pulleys, mounts, and associated fasteners with callout letters A through S and torque specifications.
  1. A Side engine mount
  2. B Cylinder head cover
  3. C Rubber seals
  4. D Rubber seals
  5. E Key
  6. F Timing belt
  7. G Timing balancer belt
  8. H Lower cover
  9. J Crankshaft pulley
  10. K Pulley bolt
  11. L Adjusting nut
  12. M Rubber seals
  13. N Socket wrench, 19mm
  14. O Upper cover
  15. P Pulley holder attachment, 50mm
  16. Q Handle
  17. R O - ring
  18. S Dipstick/pipe
