Cylinder head/valve train: repairs
EngineInspection · page 2 of 2
  1. Loosen the adjusting bolt and mounting bolt/nut then remove the power steering pump belt.

Note:

  • Do not disconnect the P/S pipe and hose.
  • Mark the direction of rotation before removing belt.
  • After installing, adjust the tension of the P/S pump belt.

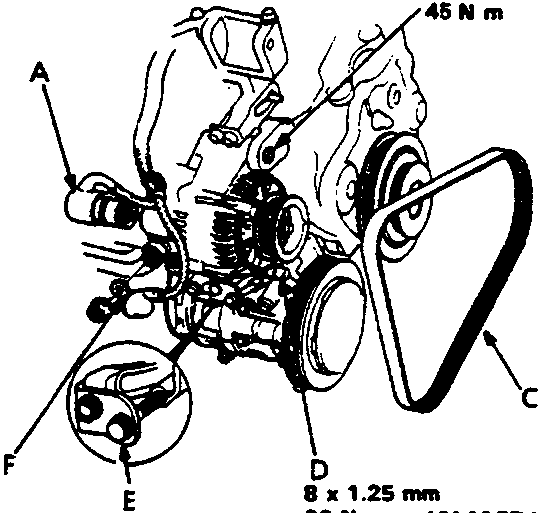

Diagram showing alternator, mounting bolts, belts, and terminals with callout letters A through F and torque specifications.
  1. A Alternator connector
  2. B Mounting bolt
  3. C Alternator belt
  4. D Mounting nut
  5. E Adjusting bolt
  6. F Alternator terminal
  7. Disconnect the alternator terminal and the connector, then remove the engine wire harness from the cylinder head cover.
  8. Loosen the mounting bolt/nut and the adjusting bolt then remove the alternator belt. On refit adjust the alternator belt, see ELECTRICAL.
