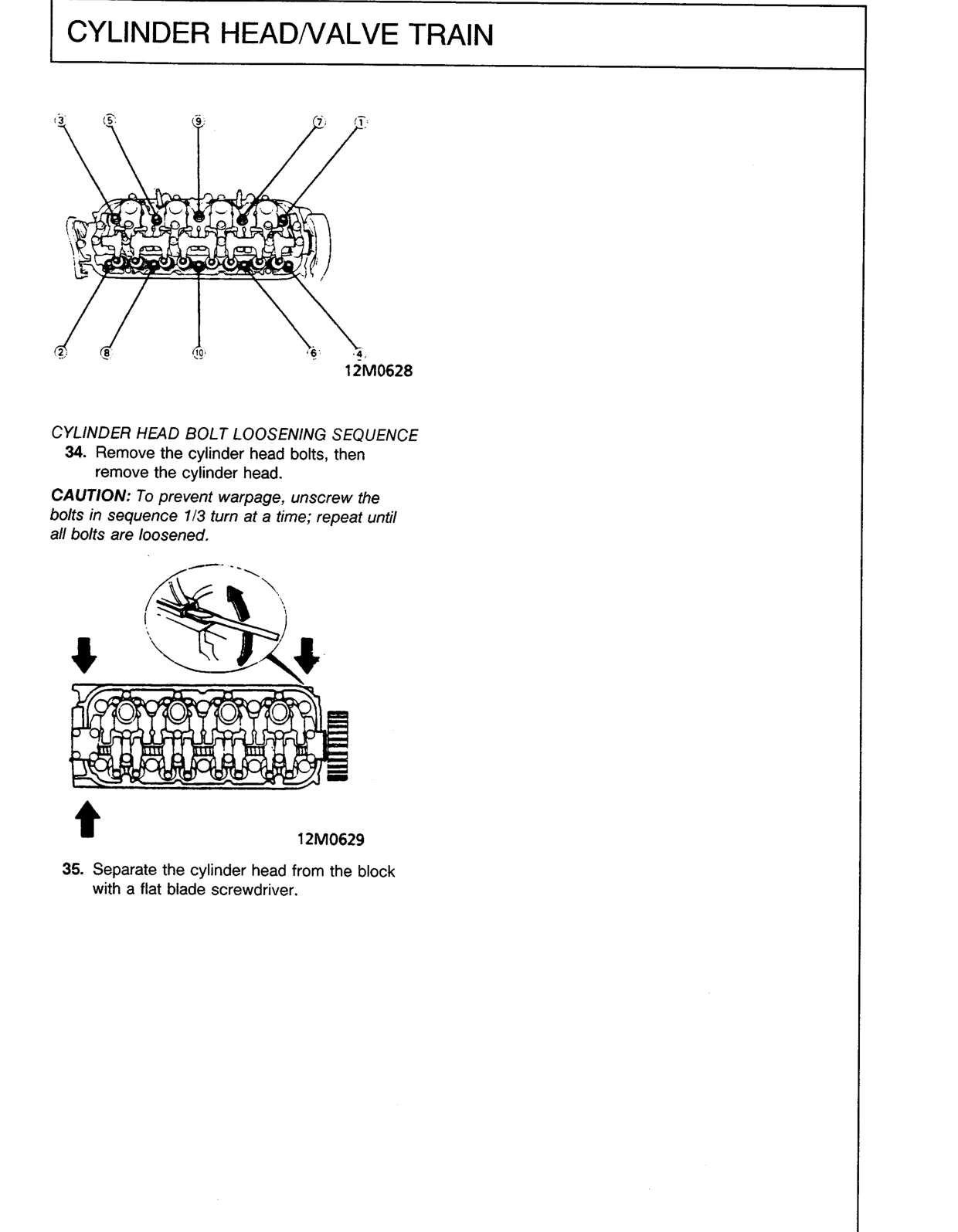

Cylinder head/valve train: repairs › Original page
EngineOriginal page

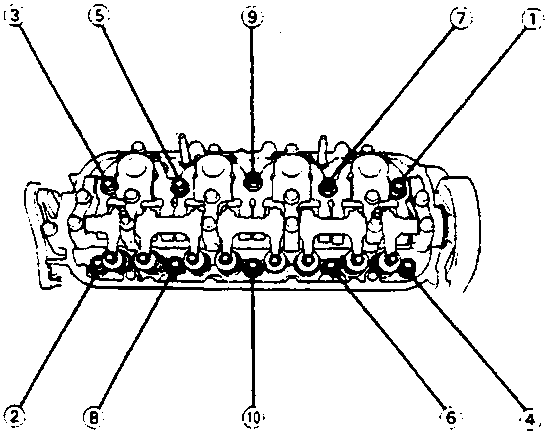

Diagram showing the cylinder head bolt loosening sequence with numbered lines pointing to bolts 1 through 10

CYLINDER HEAD BOLT LOOSENING SEQUENCE

  1. Remove the cylinder head bolts, then remove the cylinder head.

CAUTION: To prevent warpage, unscrew the bolts in sequence 1/3 turn at a time; repeat until all bolts are loosened.

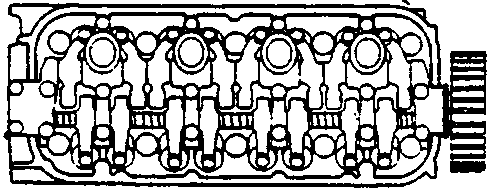

Diagram showing the separation of the cylinder head from the block using a flat blade screwdriver, indicated by arrows
  1. Separate the cylinder head from the block with a flat blade screwdriver.
