Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition03 · Engine
03 · Engine

D/valve train (page 6 of 6)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Cylinder head/valve train: repairs
EngineD/valve train · page 6 of 6

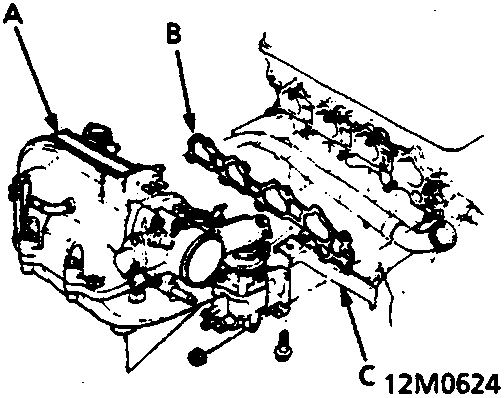

Diagram showing intake manifold, gasket, and bracket labeled A, B, C
A Intake manifold B Gasket C Bracket
  1. Remove the intake manifold bracket and manifold. Replace the gasket.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Remove engine splash shield.

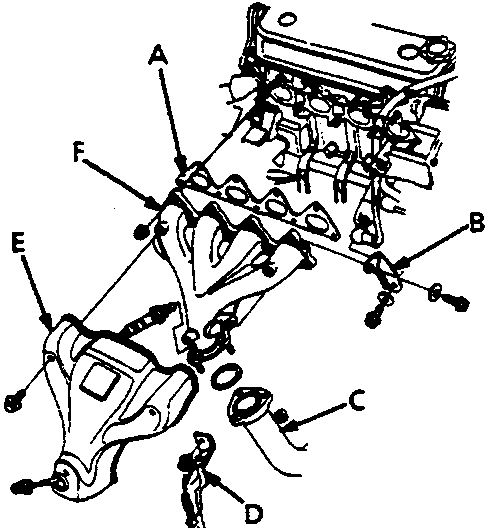

Diagram showing exhaust manifold components including gasket, bracket, exhaust pipe, heat insulator, upper cover, and exhaust manifold labeled A through F
A Gasket B Bracket C Exhaust pipe A D Heat insulator E Upper cover F Exhaust manifold
  1. Remove the heat insulator (vehicles equipped with A/C only).
  2. Remove the self – locking nuts and disconnect the exhaust manifold and exhaust pipe.
  3. Remove the exhaust manifold bracket and exhaust manifold.
  4. Replace the gasket.

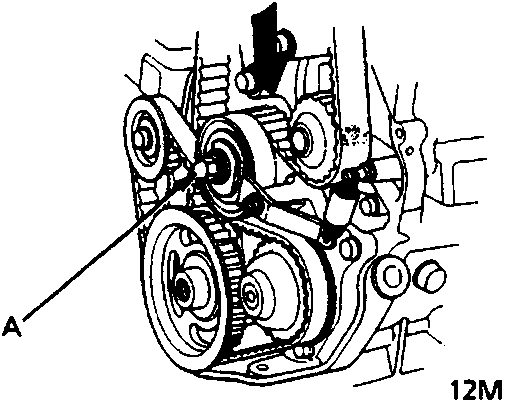

Diagram showing timing belt assembly with adjusting nut labeled A
A Adjusting nut
  1. Remove the upper cover.
  2. Loosen the adjusting nut 270 – 360 degrees.

Note: Do not remove the adjusting nut.

  1. Push the tensioner to release tension from the timing belt, then retighten the adjusting nut.
  2. Remove the timing belt from the camshaft pulley.
Detail of timing belt showing a 25 mm diameter measurement
  1. Inspect the timing belt

CAUTION: Do not crimp or bend the timing belt more than 90 degrees or less than 25mm in diameter.
