Refit

Note: Exhaust and intake valve seals are NOT interchangeable.

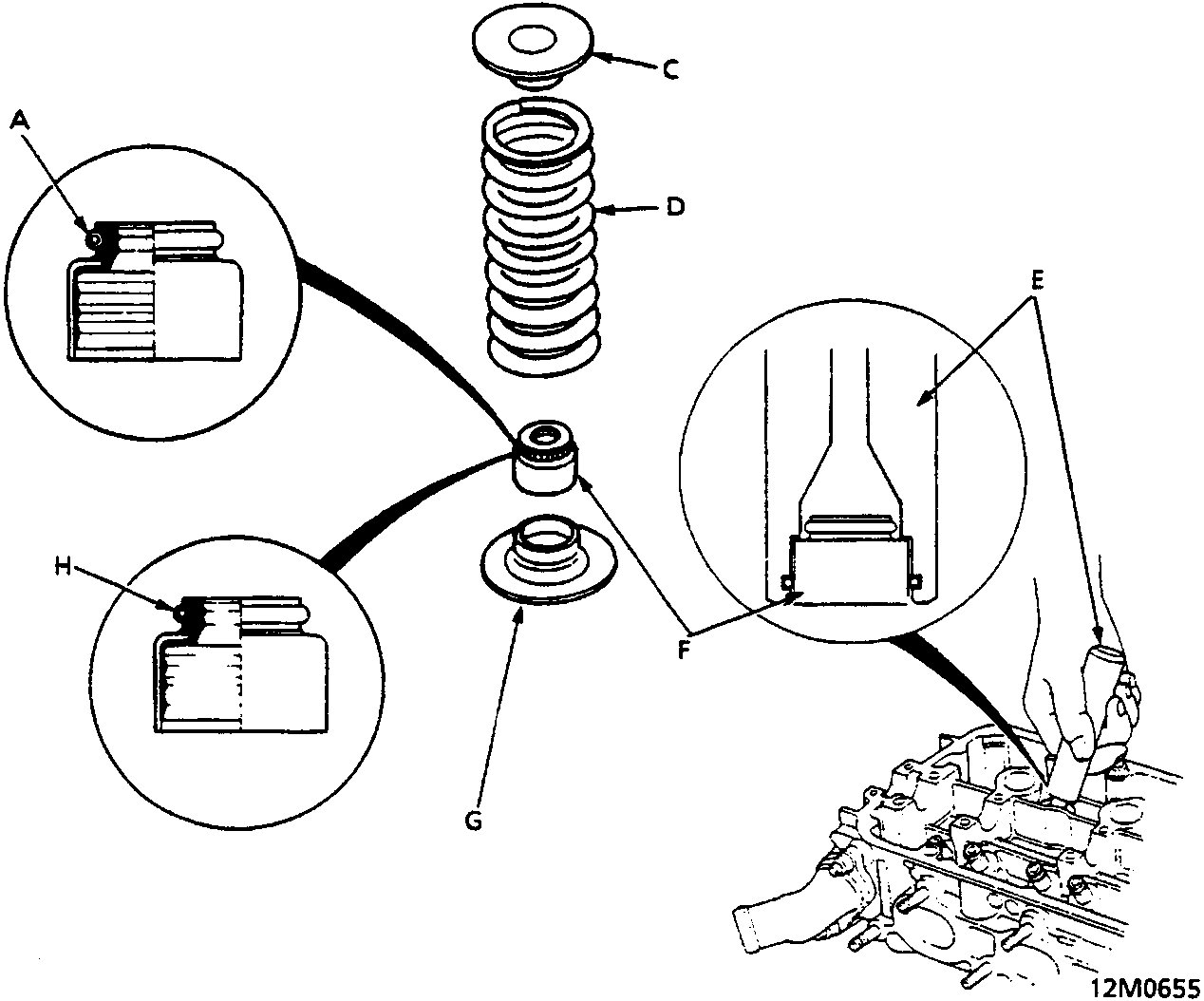

Exploded view of valve assembly components including valve seal, keepers, retainer, spring, installer, seat, and exhaust valve seal being installed into cylinder head.
  • A Intake valve seal (white spring)
  • B Valve keepers
  • C Valve retainer
  • D Valve spring
  • E Valve seal installer
  • F Valve seal
  • G Spring seat
  • H Exhaust valve seal (black spring)
