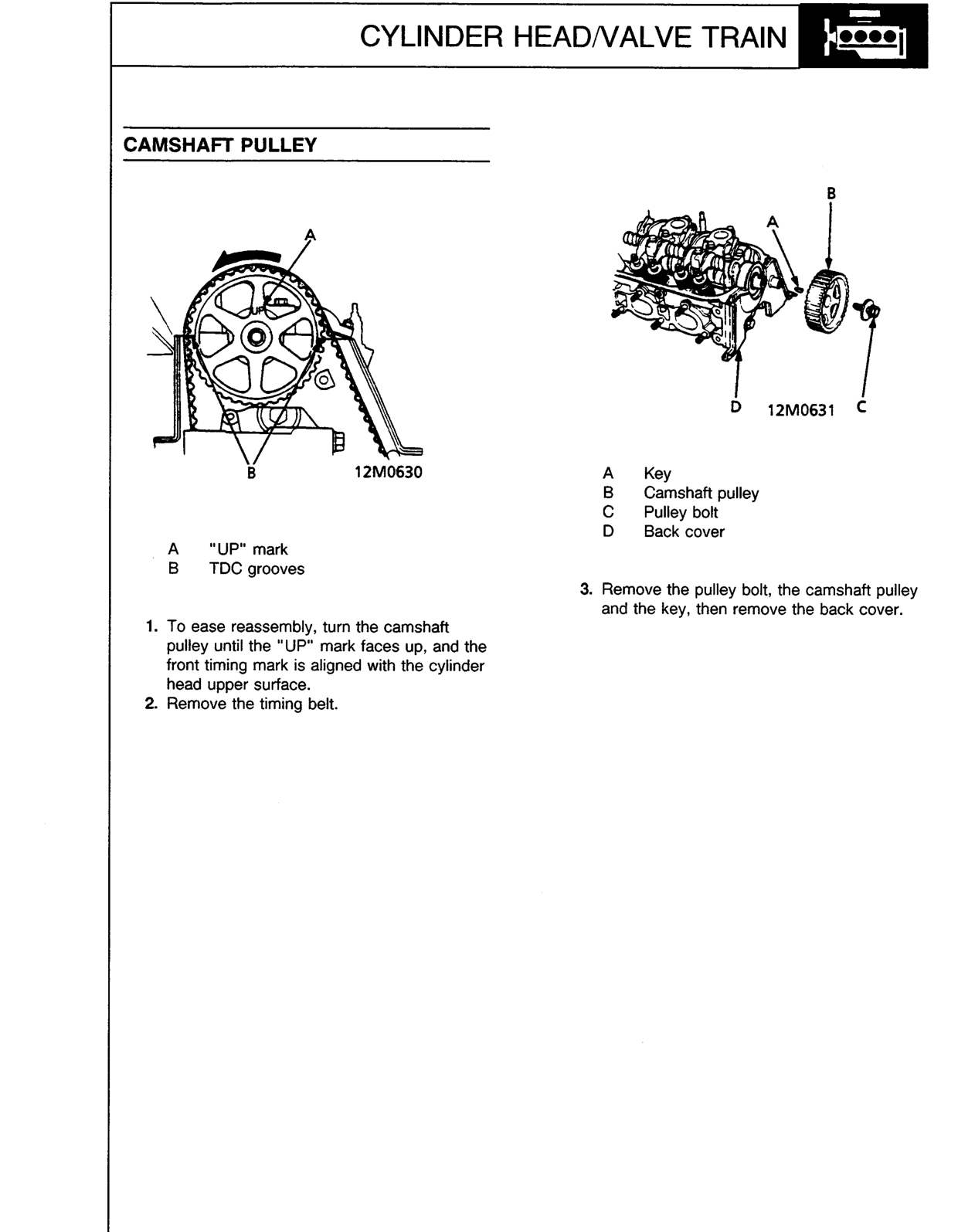

Original page

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Cylinder head/valve train: repairs › Original page
EngineOriginal page

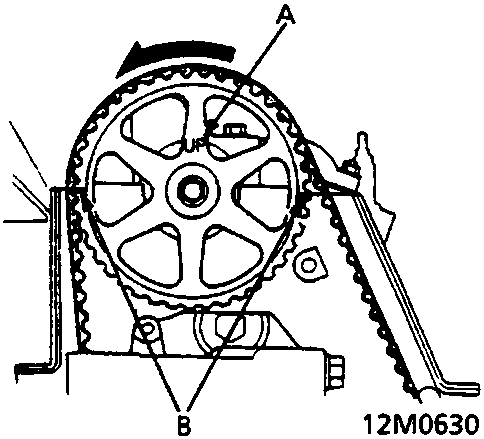

Diagram of camshaft pulley showing timing belt alignment with 'UP' mark and TDC grooves

A     "UP" mark

B     TDC grooves

  1. To ease reassembly, turn the camshaft pulley until the "UP" mark faces up, and the front timing mark is aligned with the cylinder head upper surface.
  2. Remove the timing belt.

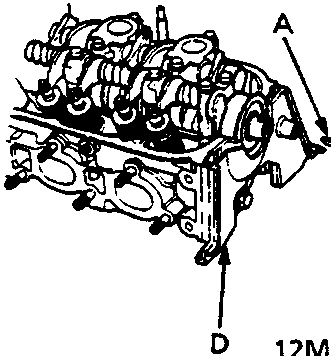

Exploded view of camshaft pulley assembly showing key, pulley, bolt and back cover

A     Key

B     Camshaft pulley

C     Pulley bolt

D     Back cover

  1. Remove the pulley bolt, the camshaft pulley and the key, then remove the back cover.
