Cylinder head/valve train: repairs
EngineHead/valve train · page 3 of 5

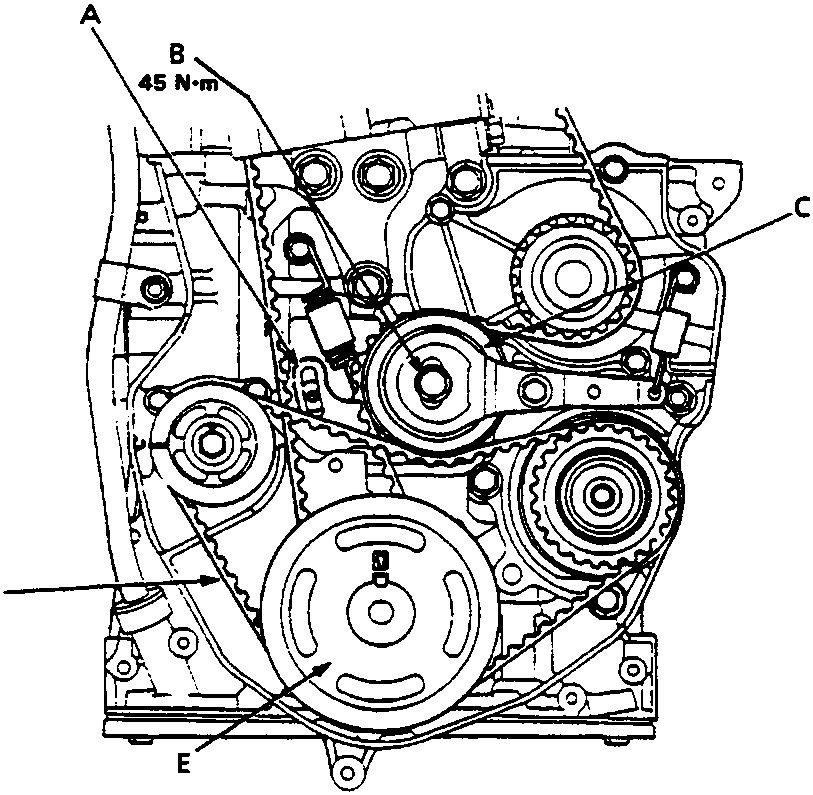

Diagram of timing belt and balancer belt assembly showing adjuster arm, adjusting nut, balancer belt adjusters, and pulleys with callout labels A through F. Torque value 45 N·m indicated at callout B.

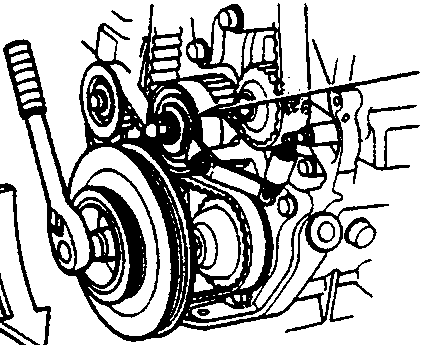

Close-up diagram of timing balancer belt adjuster mechanism with callout label D and a curved arrow indicating direction of rotation.

12M0676

ATiming belt adjuster armDTiming balancer belt adjuster
BAdjusting nutETiming balancer belt drive pulley
CTiming balancer belt adjusterFTiming balancer belt
  1. Lock the timing belt adjuster arm in place by installing one of the 6 x 1.0mm lower cover mounting bolts.
  2. Loosen the timing belt adjusting nut. Push on the pulley to remove tension from the timing balancer belt, then tighten the adjusting nut.
  3. Remove the timing balancer belt.
    Note: Mark the direction of rotation before removing belt.
  4. Loosen the 6 x 1.0mm lock bolt and the adjusting nut. Push on the timing belt adjuster pulley to remove tension from the belt, then tighten the adjusting nut.
