Adjustment

Adjustment

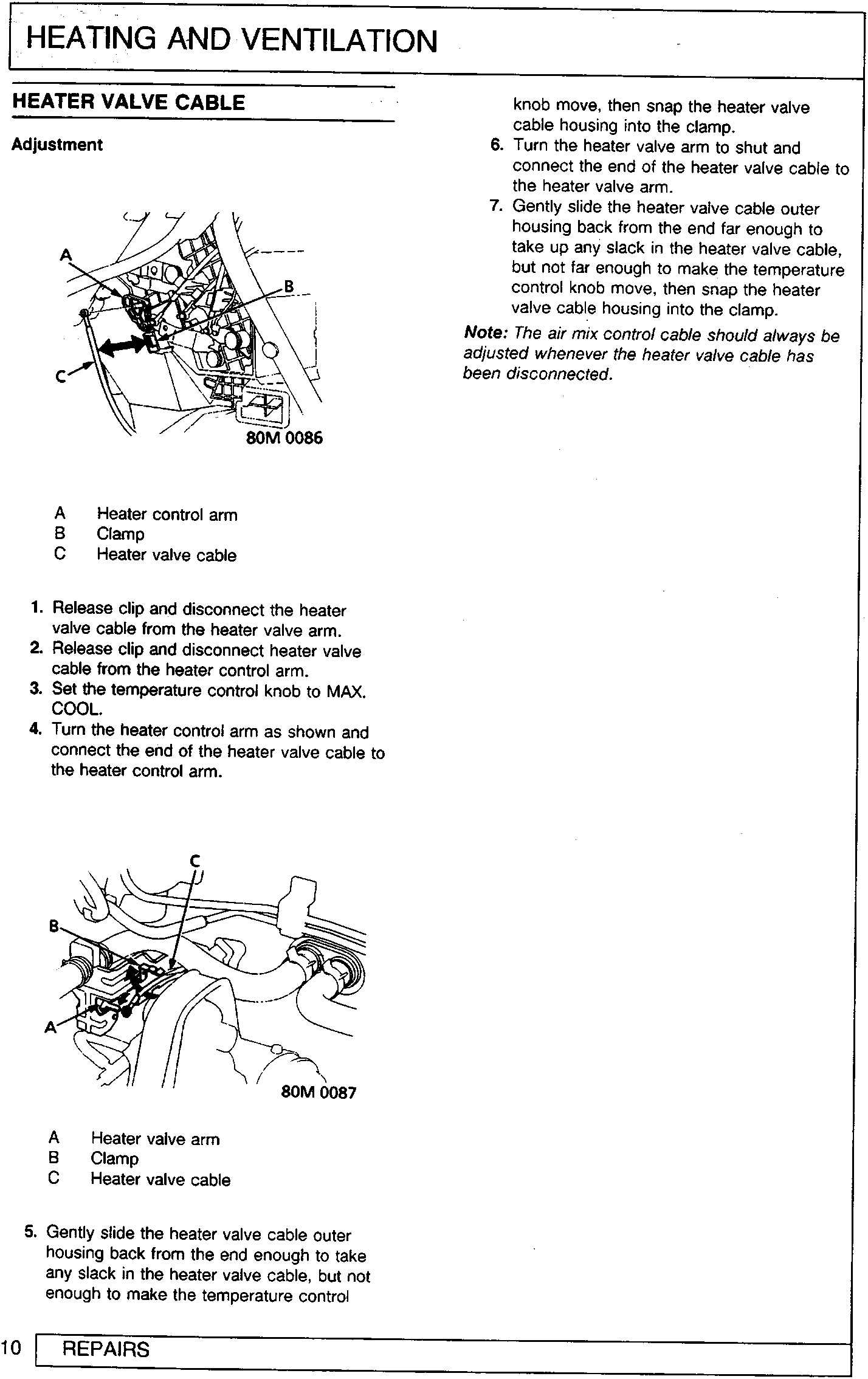

1. A Heater control arm
2. B Clamp
3. C Heater valve cable

1. Release clip and disconnect the heater valve cable from the heater valve arm.
2. Release clip and disconnect heater valve cable from the heater control arm.
3. Set the temperature control knob to MAX. COOL.
4. Turn the heater control arm as shown and connect the end of the heater valve cable to the heater control arm.

1. A Heater valve arm
2. B Clamp
3. C Heater valve cable

5. Gently slide the heater valve cable outer housing back from the end enough to take any slack in the heater valve cable, but not enough to make the temperature control knob move, then snap the heater valve cable housing into the clamp.
6. Turn the heater valve arm to shut and connect the end of the heater valve cable to the heater valve arm.
7. Gently slide the heater valve cable outer housing back from the end far enough to take up any slack in the heater valve cable, but not far enough to make the temperature control knob move, then snap the heater valve cable housing into the clamp.

Note: The air mix control cable should always be adjusted whenever the heater valve cable has been disconnected.
