Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition17 · Heating and ventilation
17 · Heating & A/C

Mode control cable

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Mode control cable
Heating and ventilationMode control cable

MODE CONTROL CABLE

Adjustment

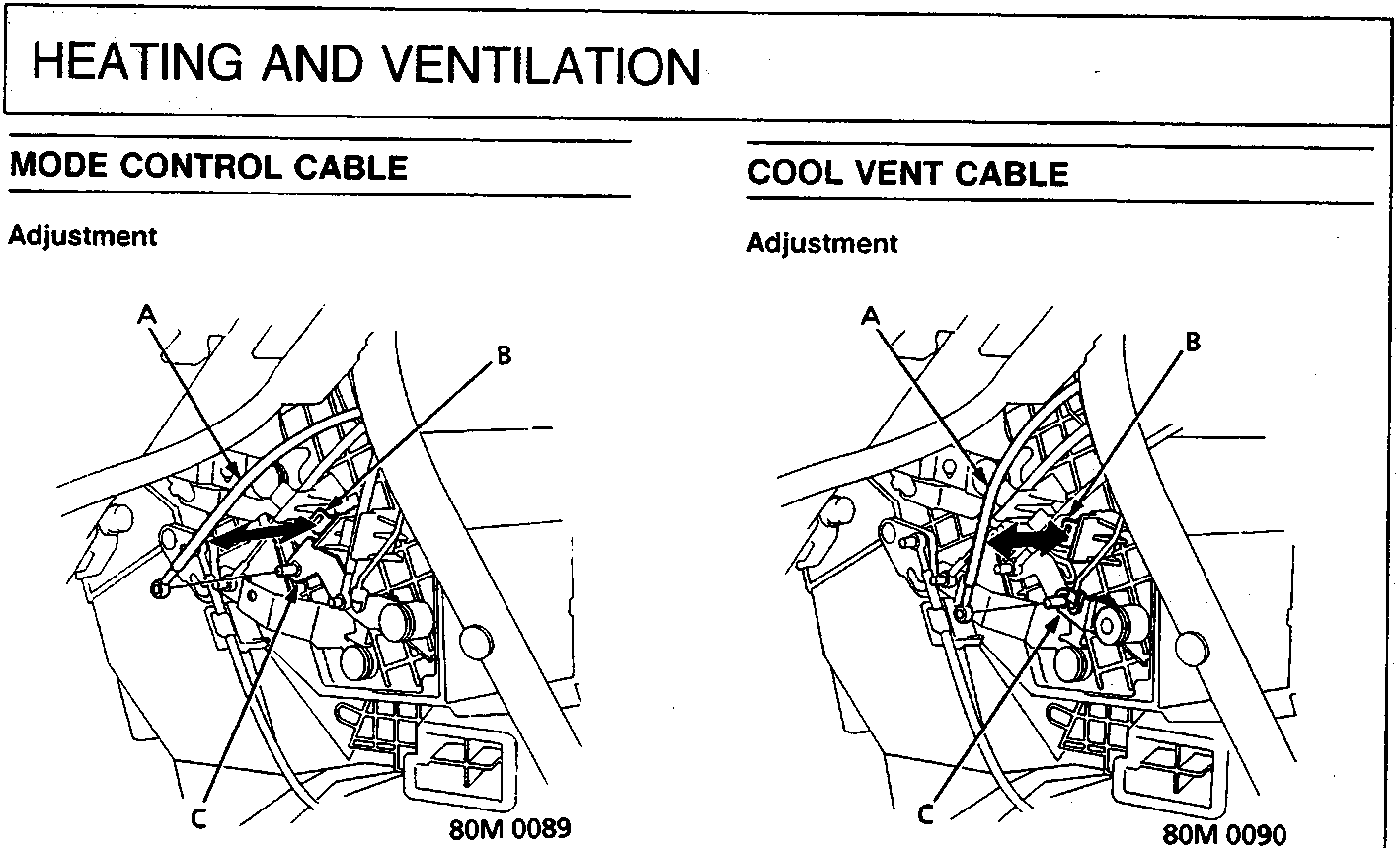

Diagram of mode control cable adjustment showing components A, B, and C

A Mode control cable
B Clamp
C Mode control arm

  1. Disconnect the mode control cable from the mode control arm and the clamp.
  2. Set the mode control knob to VENT.
  3. Turn the mode control arm as shown and connect the end of the mode control cable to the mode control arm.

COOL VENT CABLE

Adjustment

Diagram of cool vent cable adjustment showing components A, B, and C

A Cool vent cable
B Clamp
C Cool vent arm

  1. Disconnect the cool vent cable from the cool vent arm and the clamp.
  2. Set the cool vent knob to SHUT (DOWN).
  3. Turn the cool vent arm as shown and connect the end of the cool vent cable to the cool vent arm.
