Heating and ventilationReplacement · page 1 of 3

Replacement

  1. Discharge the refrigerant.

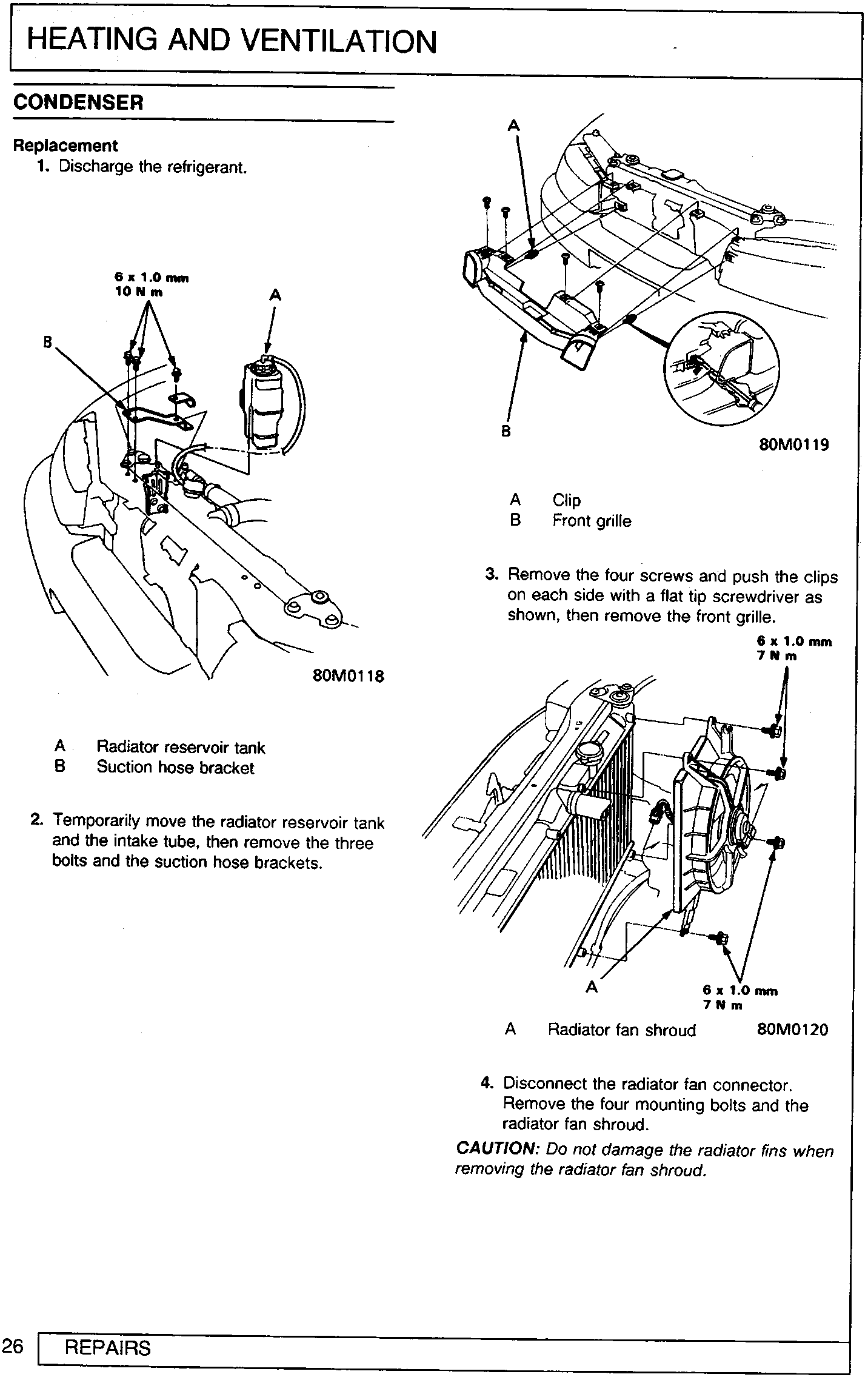

Diagram showing radiator reservoir tank and suction hose bracket with torque specification 6 x 1.0 mm 10 N m

A Radiator reservoir tank
B Suction hose bracket

  1. Temporarily move the radiator reservoir tank and the intake tube, then remove the three bolts and the suction hose brackets.
Diagram showing front grille and clip removal with callout labels A and B

A Clip
B Front grille

  1. Remove the four screws and push the clips on each side with a flat tip screwdriver as shown, then remove the front grille.
Diagram showing radiator fan shroud removal with torque specifications 6 x 1.0 mm 7 N m

A Radiator fan shroud

  1. Disconnect the radiator fan connector. Remove the four mounting bolts and the radiator fan shroud.

CAUTION: Do not damage the radiator fins when removing the radiator fan shroud.
