Manual gearboxComponents · page 1 of 2

Components

  • The shift arm cover can be removed and installed with the gearbox in the car.
  • Lubricate all moving and sliding surfaces with grease.
  • Turn the boot so the hole is facing down.

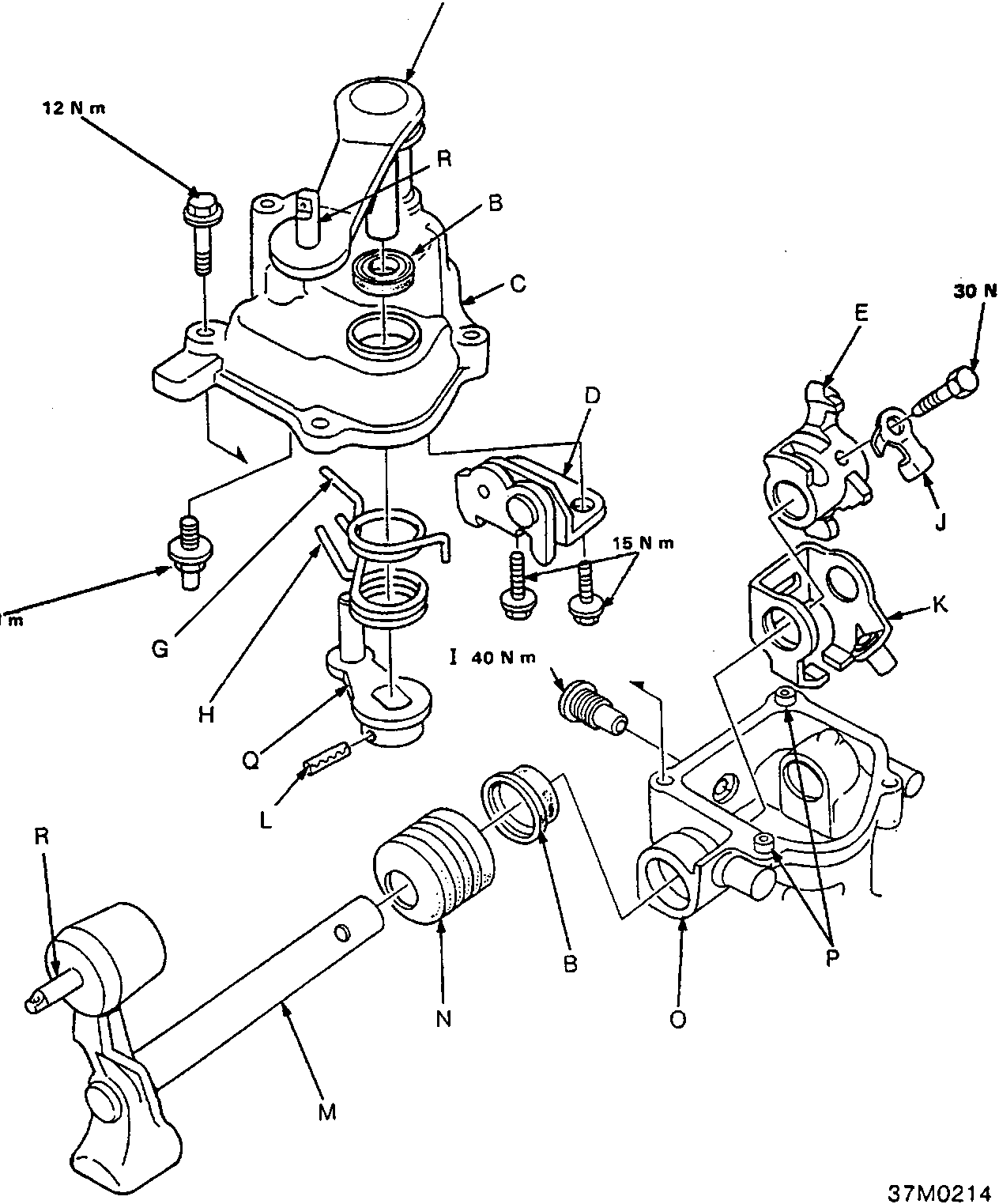

Exploded view diagram of the manual gearbox shift arm assembly showing components labeled A through R, including levers, boots, springs, bolts, and mounting brackets. Torque values 12 N m, 15 N m, 30 N m, and 40 N m are indicated on specific fasteners. Figure number 37M0214 is printed at the bottom right.
