Reverse idler gear

If the width of the groove exceeds the standard, replace the reverse shift fork.

If the width of the groove is within the standard, replace the 5th/reverse shift piece.

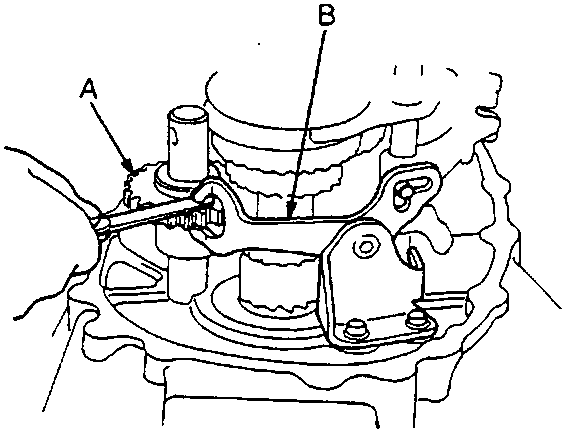

1. A Reverse idler gear
2. B Reverse shift fork
3. Measure the clearance between the reverse idler gear and reverse shift fork.

Standard: 0.5 – 1.1 mm
Service Limit: 1.8 mm

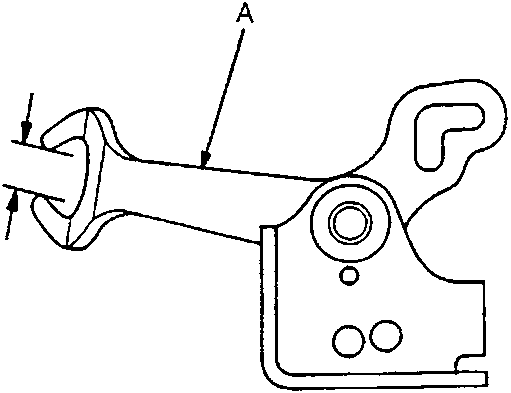

1. A Reverse shift fork
4. If the clearance exceeds the service limit, measure the width of the reverse shift fork.

Standard: 13.0 – 13.3 mm
If the width exceeds the standard, replace the reverse shift fork.
If the width is within the standard, replace the reverse idler gear.

REVERSE IDLER GEAR

Removal

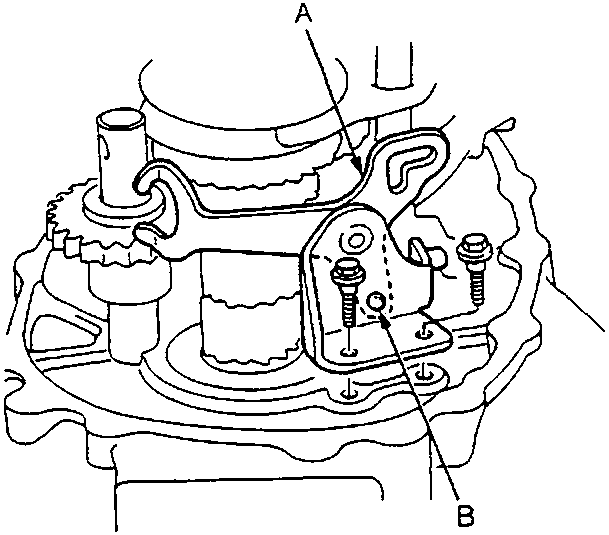

1. A Reverse shift fork
2. B Steel ball
1. Remove the reverse shift fork.

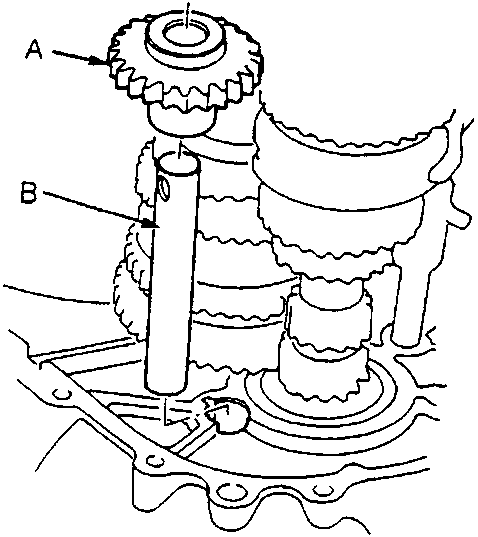

1. A Reverse idler gear
2. B Reverse idler gear shaft
2. Remove the reverse idler gear shaft and the reverse idler gear.
