Manual gearbox37M0239 · page 1 of 2
Diagram of 4th gear component with callout A

37M0239

A 4th Gear

If the thickness of 4th gear is less than the service limit, replace 4th gear.

If the thickness of 4th gear is within the service limit, replace the 3rd/4th synchro hub.

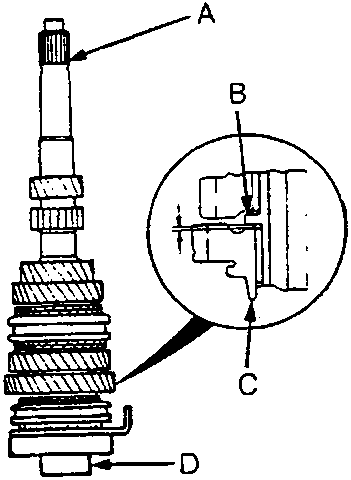

Diagram of mainshaft assembly showing clearance measurement between spacer collar and 5th gear with callouts A, B, C, D

37M0240

  • A Mainshaft
  • B Spacer collar
  • C 5th Gear
  • D Socket
  1. Measure the clearance between the spacer collar and 5th gear.

Standard: 0.06 – 0.21 mm

Service Limit: 0.3 mm

Diagram of spacer collar with callouts A, B and dimension mark B circled

37M0241

  • A Spacer collar
  • B 5th Gear side
  1. If the clearance exceeds the service limit, measure distance B on the spacer collar.

Standard: 26.03 – 26.08 mm

Service Limit: 26.01 mm

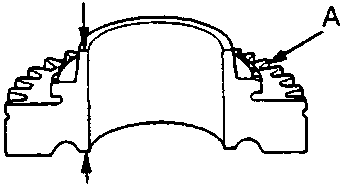

Diagram of 5th gear component with callout A

37M0242

A 5th Gear

  1. If distance B is less than the service limit, replace the spacer collar.

If distance B is within the service limit, measure thickness of 5th gear.

Standard: 30.92 – 30.97 mm

Service Limit: 30.8 mm

If the thickness of 5th gear is less than the service limit, replace 5th gear.

If the thickness of 5th gear is within the service limit, replace the 5th synchro hub.

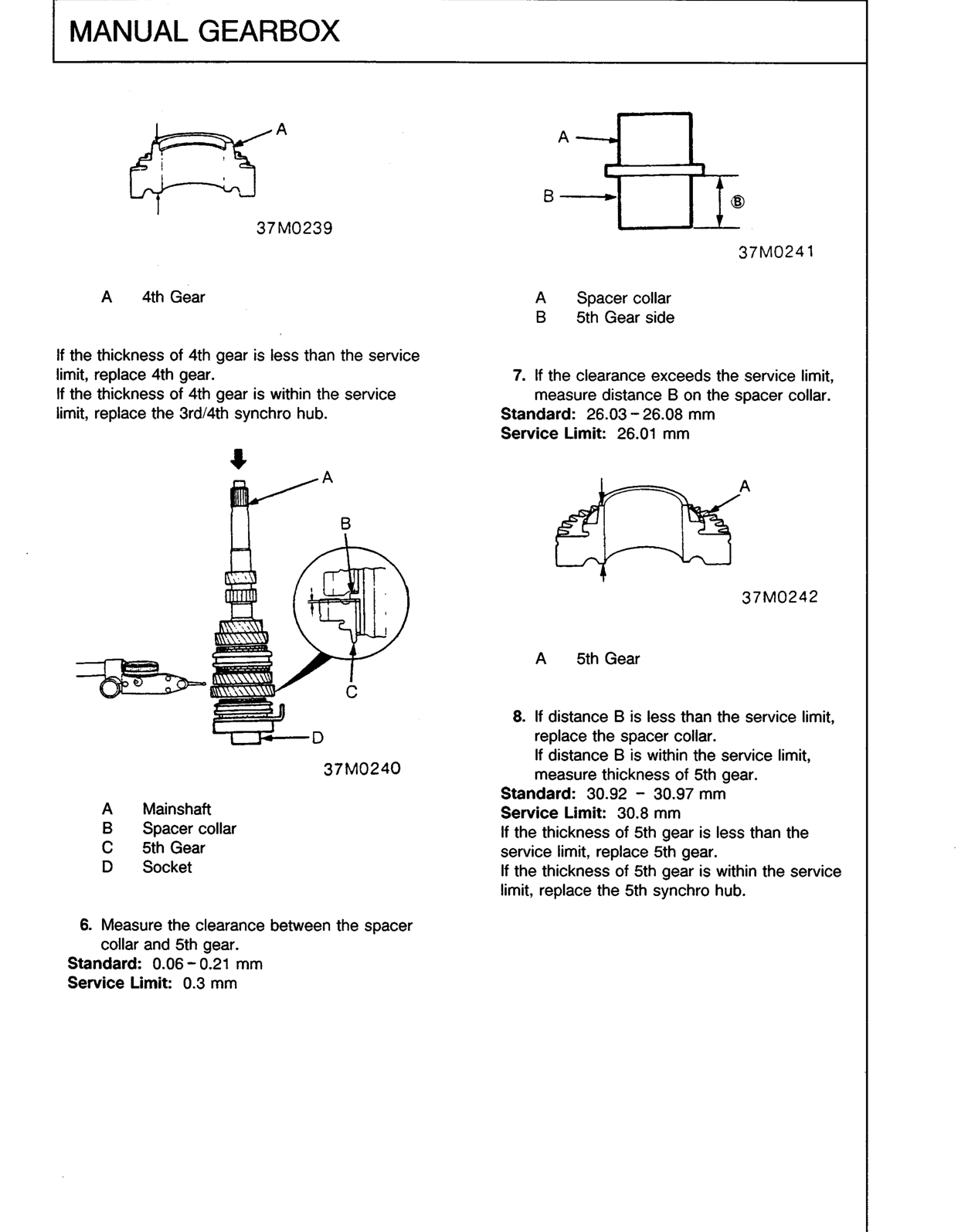

Original page
