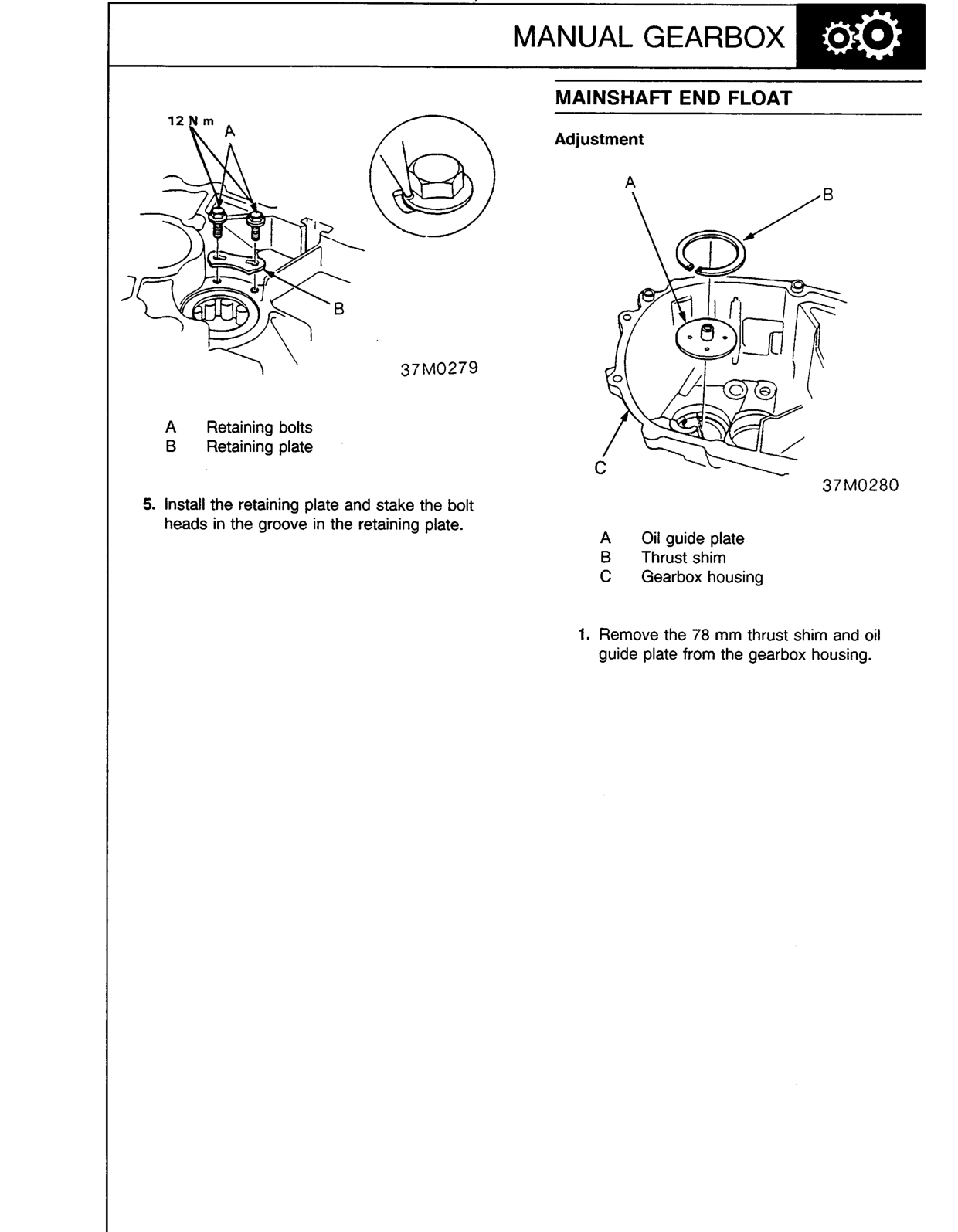

Manual gearbox37M0279 · page 1 of 2

12 Nm

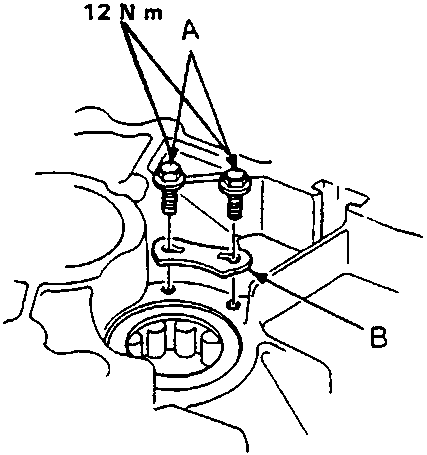

Diagram showing retaining bolts A and retaining plate B with a torque value of 12 Nm indicated.
Close-up detail of a staked bolt head in the retaining plate groove.

37M0279

  • A Retaining bolts
  • B Retaining plate
  1. Install the retaining plate and stake the bolt heads in the groove in the retaining plate.

MAINSHAFT END FLOAT

Adjustment

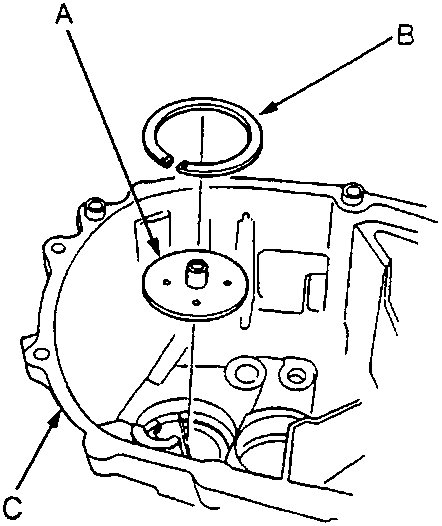

Diagram showing oil guide plate A, thrust shim B, and gearbox housing C.

37M0280

  • A Oil guide plate
  • B Thrust shim
  • C Gearbox housing
  1. Remove the 78 mm thrust shim and oil guide plate from the gearbox housing.
