Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition07 · Manual gearbox
07 · Transmission

Countershaft bearing (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Manual gearboxCountershaft bearing · page 2 of 2

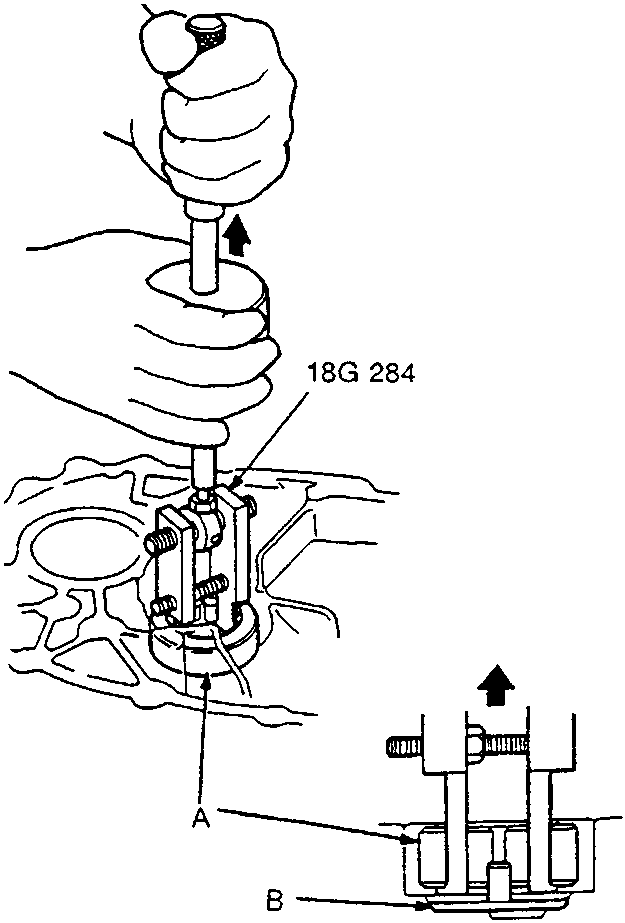

Diagram showing the removal of a needle bearing and oil guide plate using tool 18G 284. Labels A and B point to the components respectively.
A Needle bearing
B Oil guide plate
  1. Remove the needle bearing with the special tool, then remove the oil guide plate.

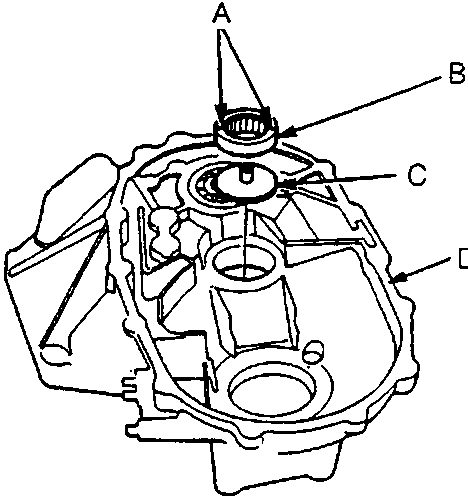

Exploded view of the clutch housing showing the arrangement of oil holes, needle bearing, oil guide plate, and the housing itself.
A Oil holes
B Needle bearing
C Oil guide plate
D Clutch housing
  1. Position the oil guide plate and new needle bearing in the bore of the clutch housing.

Note: Position the needle bearing with the oil hole facing up.

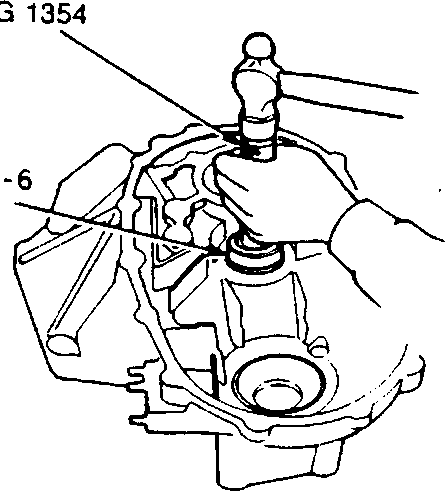

Diagram showing the installation of the needle bearing into the clutch housing using tools 18G 1354 and 18G 1354-6.
A Needle bearing
  1. Drive the needle bearing in using the special tools as shown.

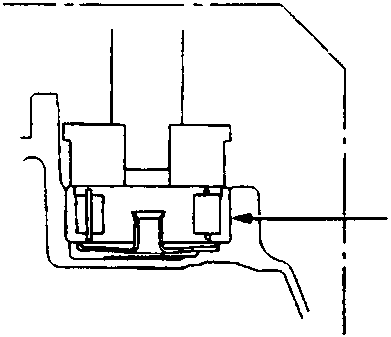

Cross-sectional detail of the installed needle bearing (A) seated within the clutch housing bore.
