Workshop Manuals Factory service & repair Rover
Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition07 · Manual gearbox
07 · Transmission

Countershaft bearing

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Countershaft bearing
Manual gearboxCountershaft bearing · page 1 of 2

COUNTERSHAFT BEARING

Replacement

Diagram showing tools 18G 1354 and 18G 1354-6 being used to remove a ball bearing from a gearbox assembly
Cross-section detail of the ball bearing area labeled A

A Ball bearing

  1. Drive the new ball bearing in from the gearbox side using the special tools as shown.

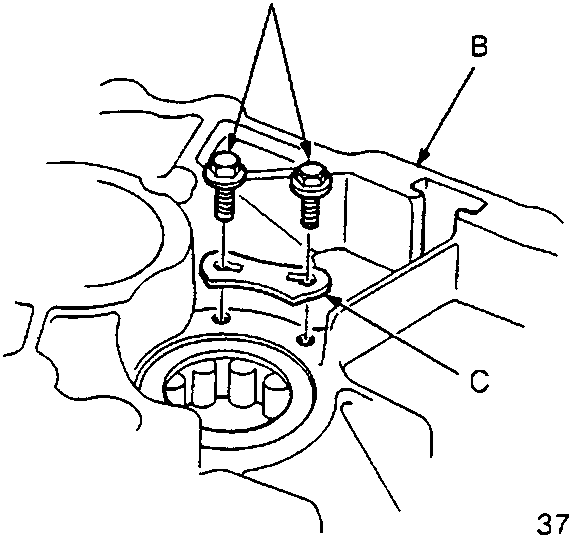

Diagram of clutch housing showing retaining plate (C) and bolts (A) being removed from the housing (B)

A Replace
B Clutch housing
C Retaining plate

  1. Remove the retaining plate from the clutch housing.
