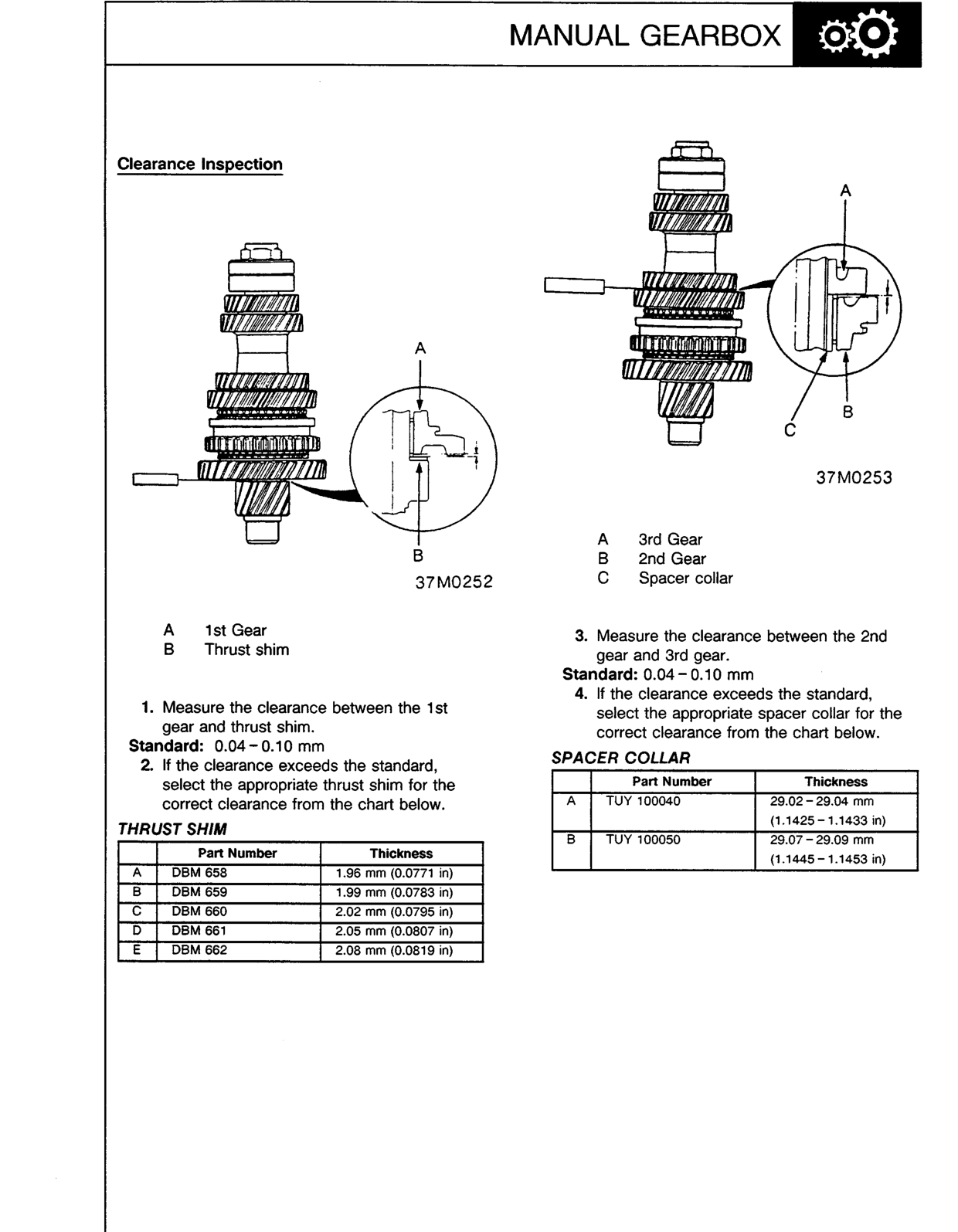

Manual gearboxOriginal page · page 1 of 2

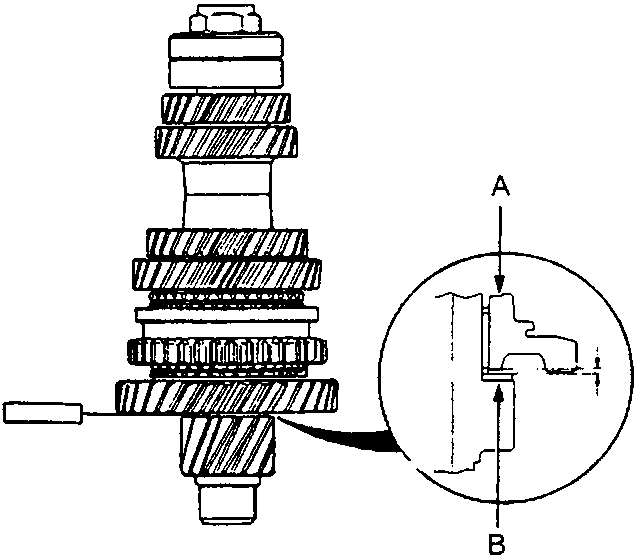

B Thrust shim 1. Measure the clearance between the 1st gear and thrust shim.
Standard: 0.04 – 0.10 mm 2. If the clearance exceeds the standard, select the appropriate thrust shim for the correct clearance from the chart below. THRUST SHIM
| Part Number | Thickness | |
|---|---|---|
| A | DBM 658 | 1.96 mm (0.0771 in) |
| B | DBM 659 | 1.99 mm (0.0783 in) |
| C | DBM 660 | 2.02 mm (0.0795 in) |
| D | DBM 661 | 2.05 mm (0.0807 in) |
| E | DBM 662 | 2.08 mm (0.0819 in) |
B 2nd Gear

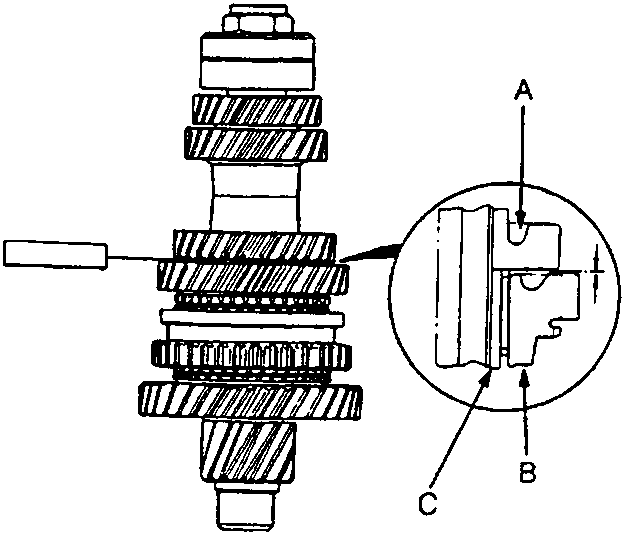

C Spacer collar 3. Measure the clearance between the 2nd gear and 3rd gear.
Standard: 0.04 – 0.10 mm 4. If the clearance exceeds the standard, select the appropriate spacer collar for the correct clearance from the chart below. SPACER COLLAR
| Part Number | Thickness | |
|---|---|---|
| A | TUY 100040 | 29.02 – 29.04 mm (1.1425 – 1.1433 in) |
| B | TUY 100050 | 29.07 – 29.09 mm (1.1445 – 1.1453 in) |
