Manual gearboxOriginal page · page 2 of 2

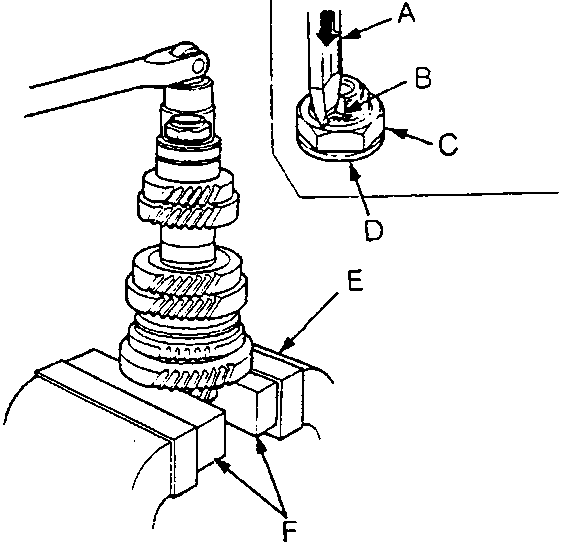

Diagram showing the countershaft assembly clamped in a bench vice with wood blocks, and a close-up of the locknut, spring washer, and tab being worked on with a chisel.

37M0254

  • A Chisel
  • B Tab
  • C Locknut
  • D Spring washer
  • E Bench vice
  • F Wood blocks
  1. Securely clamp the countershaft assembly in a bench vice with wood blocks.
  2. Raise the locknut tab from the groove of the shaft, then remove the locknut and spring washer, replace locknut.

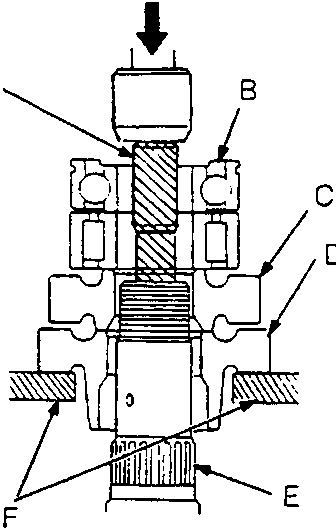

Diagram showing a press (A) removing a ball bearing (B) from a 5th gear (C) mounted on a countershaft (E), supported by steel blocks (F). An attachment (G) is also shown.

37M0255

  • A Press
  • B Ball bearing
  • C 5th Gear
  • D 4th Gear
  • E Countershaft
  • F Steel blocks
  • G Attachment
  1. Remove the ball bearing using a press as shown.

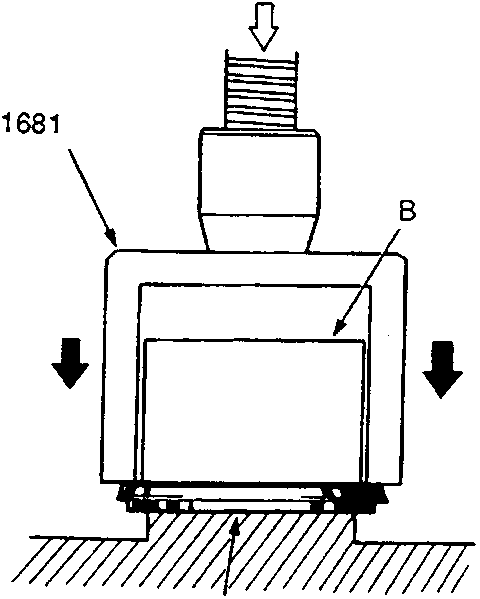

Diagram showing a press (A) applying force to a spacer collar (B) which is pressing out a friction damper (C) from the assembly. Tool reference 18G 1681 is indicated.

37M0256

  • A Press
  • B Spacer collar
  • C Friction damper.
