Manual gearboxOriginal page · page 1 of 13
| Part Number | Thickness | |
|---|---|---|
| A | EDU 4693 | 1.20 mm (0.0472 in) |
| B | EDU 4694 | 1.23 mm (0.0484 in) |
| C | EDU 4695 | 1.26 mm (0.0496 in) |
| D | EDU 4696 | 1.29 mm (0.0508 in) |
| E | EDU 4697 | 1.32 mm (0.0520 in) |
| F | EDU 4698 | 1.35 mm (0.0531 in) |
| G | EDU 4699 | 1.38 mm (0.0543 in) |
| H | EDU 4700 | 1.41 mm (0.0555 in) |
| I | EDU 4701 | 1.44 mm (0.0567 in) |
| J | EDU 4702 | 1.47 mm (0.0579 in) |
| K | EDU 4703 | 1.50 mm (0.0591 in) |
| L | EDU 4704 | 1.53 mm (0.0602 in) |
| M | EDU 4705 | 1.56 mm (0.0614 in) |
| N | EDU 4706 | 1.59 mm (0.0626 in) |
| O | EDU 4707 | 1.62 mm (0.0638 in) |
| P | EDU 4764 | 1.65 mm (0.0650 in) |
| Q | EDU 4765 | 1.68 mm (0.0661 in) |
| R | EDU 4766 | 1.71 mm (0.0673 in) |
| S | EDU 4767 | 1.74 mm (0.0685 in) |
| T | EDU 4768 | 1.77 mm (0.0697 in) |
| U | EDU 4708 | 1.80 mm (0.0709 in) |
| V | EDU 4709 | 1.83 mm (0.0720 in) |
| W | EDU 4710 | 1.86 mm (0.0732 in) |
| X | EDU 4711 | 1.89 mm (0.0744 in) |
| Y | EDU 4712 | 1.92 mm (0.0756 in) |
| Z | EDU 4713 | 1.95 mm (0.0768 in) |
| AA | EDU 4714 | 1.98 mm (0.0780 in) |
| AB | EDU 4715 | 2.01 mm (0.0791 in) |
| AC | EDU 4716 | 2.04 mm (0.0803 in) |
| AD | EDU 4717 | 2.07 mm (0.0815 in) |
| AE | EDU 4718 | 2.10 mm (0.0827 in) |
| AF | EDU 4719 | 2.13 mm (0.0839 in) |
| AG | EDU 4720 | 2.16 mm (0.0850 in) |
| AH | EDU 4721 | 2.19 mm (0.0862 in) |
| AI | EDU 4722 | 2.22 mm (0.0874 in) |
| AJ | EDU 4723 | 2.25 mm (0.0886 in) |
| AK | EDU 4724 | 2.28 mm (0.0898 in) |
| AL | EDU 4725 | 2.31 mm (0.0909 in) |
| AM | EDU 4726 | 2.34 mm (0.0921 in) |
| AN | EDU 4727 | 2.37 mm (0.0933 in) |
Note: Carry out the measurement at normal room temperature.

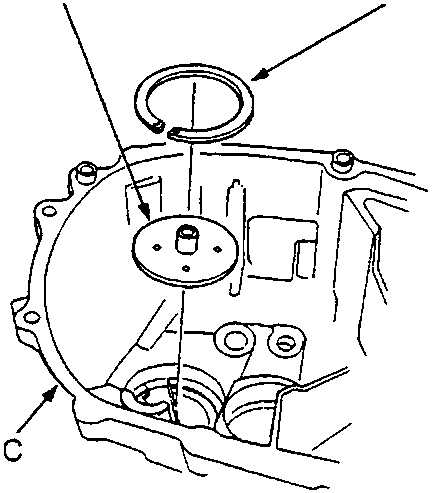

- Install the 78 mm thrust shim selected and oil guide plate in the gearbox housing.
- Install the spring washer and washer on the ball bearing.
Note:
- Clean the spring washer, washer and 78 mm thrust shim thoroughly before installation.
- Install the spring washer, washer and 78 mm thrust shim properly.
- Install the mainshaft in the clutch housing.
- Place the gearbox housing over the mainshaft and onto the clutch housing.
