Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition07 · Manual gearbox
07 · Transmission

Original page (page 7 of 13)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Manual gearboxOriginal page · page 7 of 13

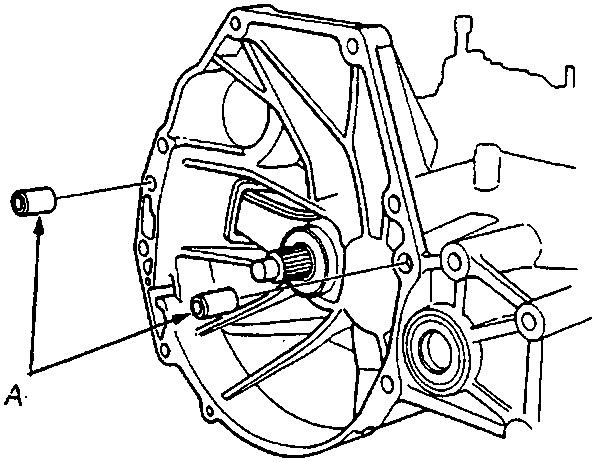

Diagram showing dowel pins being installed into the gearbox housing

A Dowel pins

  1. Install the dowel pins.

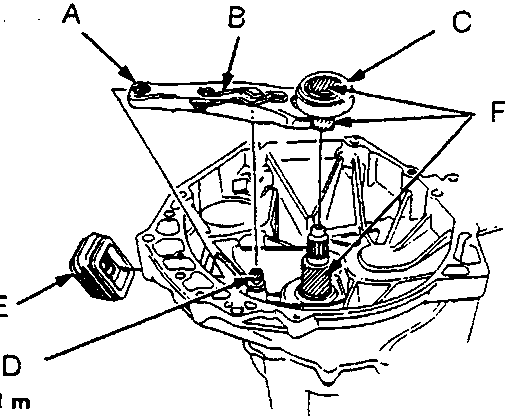

Diagram showing release fork, set spring, bearing, bolt, boot and grease application points with a 30 Nm torque specification
  • A Release fork
  • B Release fork set spring
  • C Release bearing
  • D Fork bolt
  • E Release fork boot
  • F Grease
  1. Apply grease to the parts as shown, then install the release bearing and release fork.

Note: Use only Urea Grease UM264

  1. Install the release fork boot.

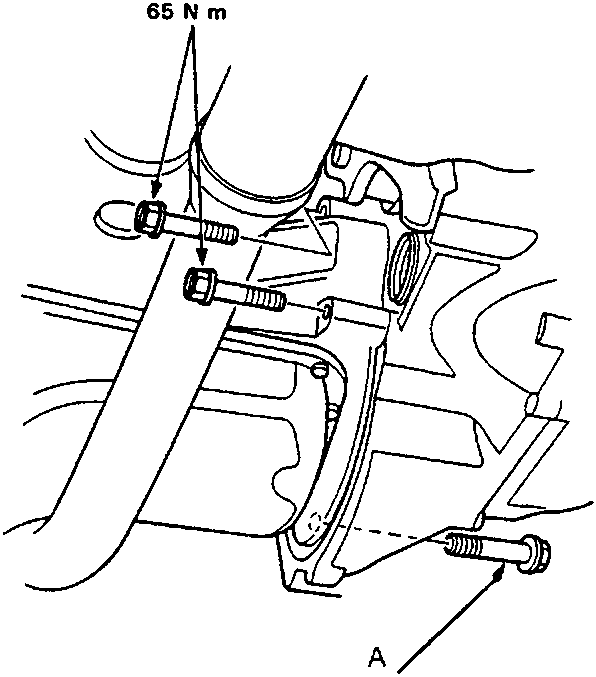

Diagram showing gearbox housing mounting bolts with dimensions 12 x 1.25 mm and 65 N m torque specification

A Gearbox housing mounting bolts

  1. Place the gearbox on the gearbox jack, and raise it to the engine level.
  2. Install the three lower gearbox housing mounting bolts.
