Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition07 · Manual gearbox
07 · Transmission

Original page (page 3 of 13)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Manual gearboxOriginal page · page 3 of 13

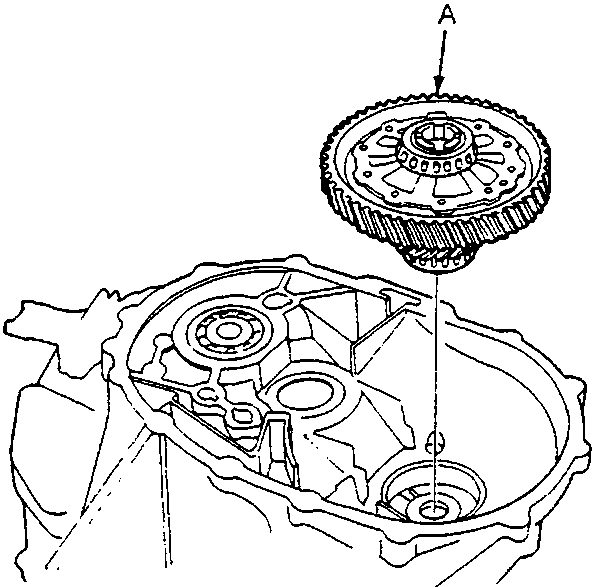

Exploded view showing the differential assembly (A) being installed into the clutch housing (B).

37M0288

  • A Differential assembly
  • B Clutch housing
  1. Install the differential assembly in the clutch housing.

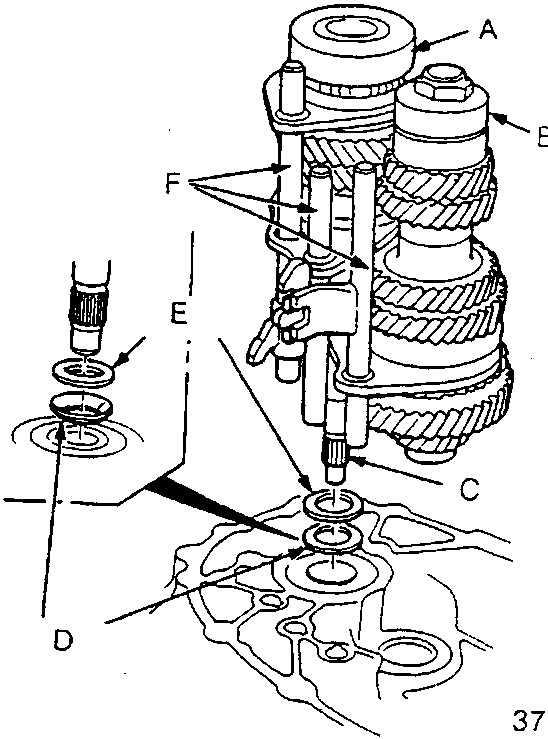

Diagram showing the mainshaft assembly (A), countershaft assembly (B), tape on mainshaft spline (C), spring washer (D), washer (E), and shift forks (F) being inserted into the clutch housing.

37M0289

  • A Mainshaft assembly
  • B Countershaft assembly
  • C Tape the mainshaft spline
  • D Spring washer
  • E Washer
  • F Shift forks
  1. Install the spring washer and washer with the angle against the clutch housing as shown.
  2. Insert the mainshaft and countershaft into the shift forks and install them as an assembly.

Note: Before installing the mainshaft and countershaft assemblies, tape the mainshaft splines to protect them.
