10 x 1.25 mm
39 N m

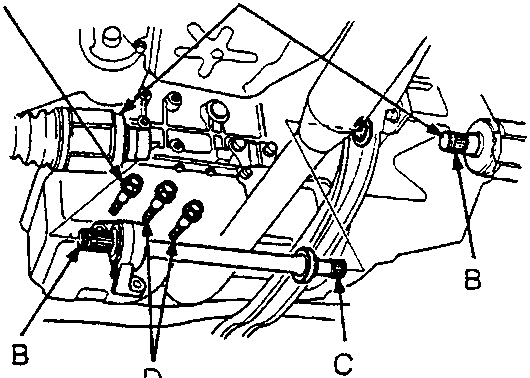

A Driveshafts
B Set ring
C Intermediate shaft
D Special bolts

12 x 1.25 mm
105 N m

12 x 1.25 mm
55 N m

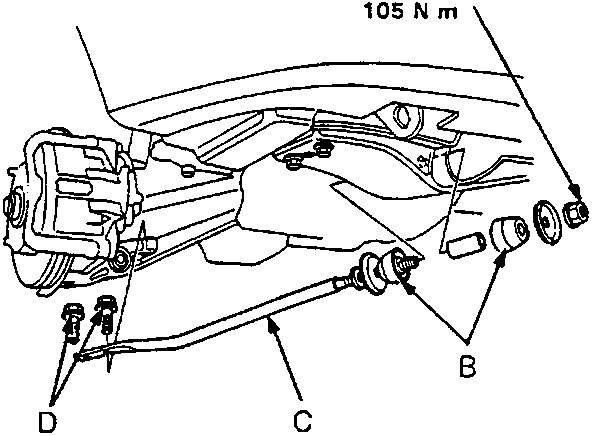

A Self – locking bolts
B Radius rod rubber bushings
C Right radius rod
D Self – locking bolts

12 x 1.25 mm
44 N m

12 x 1.25 mm
65 N m

14 x 2.0 mm
50–60 N m

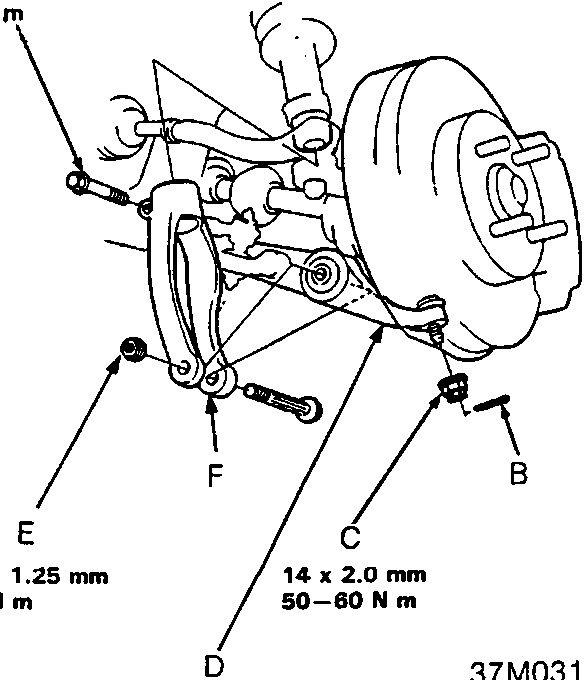

A Self – locking bolts
B Cotter pin
C Castle nut
D Lower arm
E Self – locking nut
F Damper fork

12. Install the intermediate shaft and driveshafts, see DRIVE SHAFTS.
13. Install the right radius rod, see SUSPENSION.

Note: Check for deterioration or damage of the radius rod rubber bushings.

14. Connect the ball joint to the lower arm, then install the castle nut.
15. Install the damper fork. Replace cotter pins and self locking nuts and bolts
