Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition07 · Manual gearbox
07 · Transmission

Original page (page 11 of 13)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Manual gearboxOriginal page · page 11 of 13

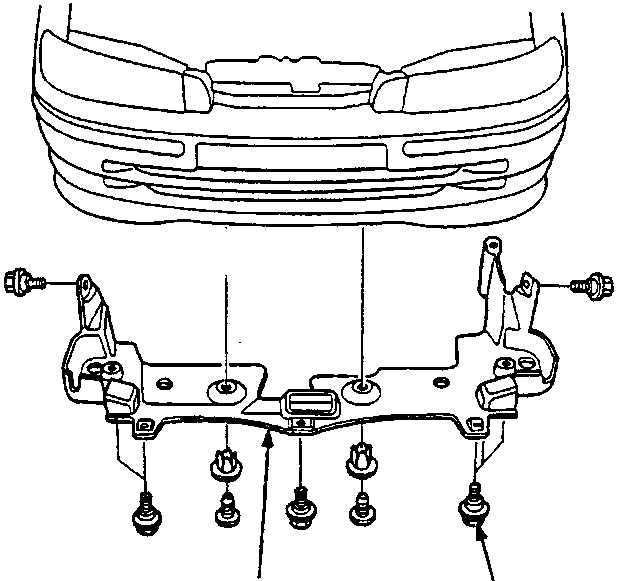

Diagram of engine splash shield with mounting bolts labeled A and torque specification 6 x 1.0 mm 10 N m

A Engine splash shield

  1. Install the engine splash shield.

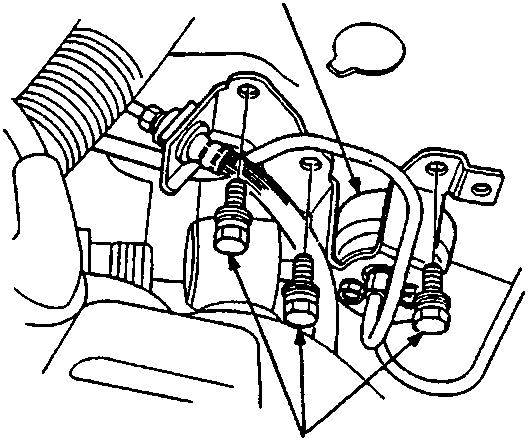

Diagram of clutch damper installation showing bolts with torque specification 8 x 1.25 mm 22 N m

A Clutch damper

  1. Install the clutch damper

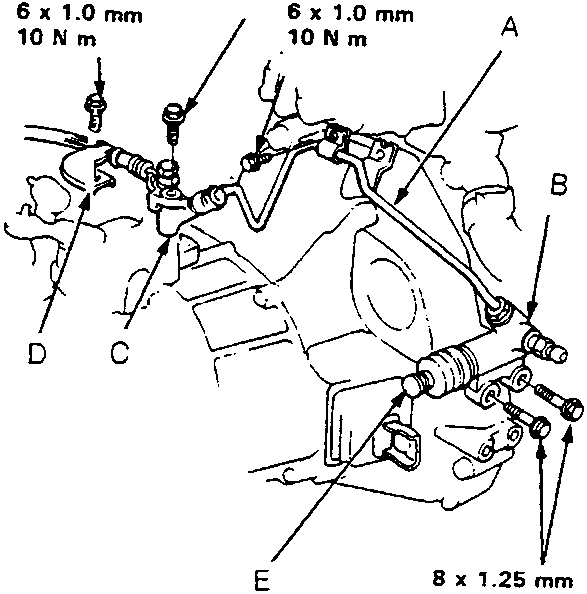

Diagram of clutch pipe, slave cylinder, hose joint, stay and grease points with various bolt sizes and torque values

A Clutch pipe

B Slave cylinder

C Clutch hose joint

D Stay

E Grease

  1. Install the slave cylinder, then install the clutch hose joint and stay, see CLUTCH.

CAUTION: Take care not to bend the clutch pipe.

8 x 1.25 mm
19 N m

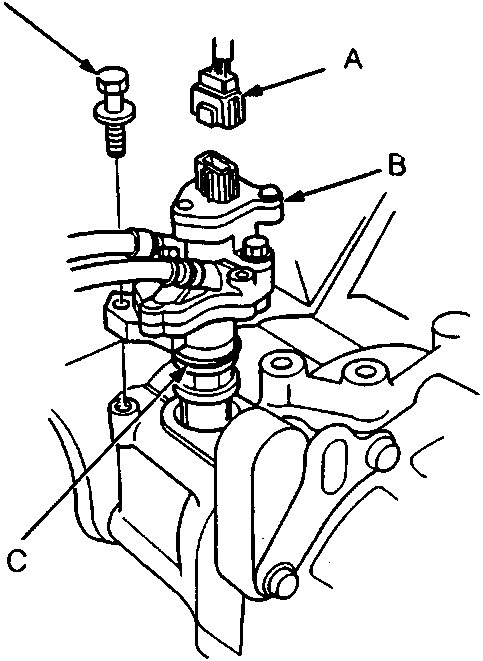

Diagram of vehicle speed sensor connector, sensor, and O-ring assembly

A Vehicle speed sensor connector

B Vehicle speed sensor

C O-ring
