Manual gearboxOriginal page · page 4 of 13

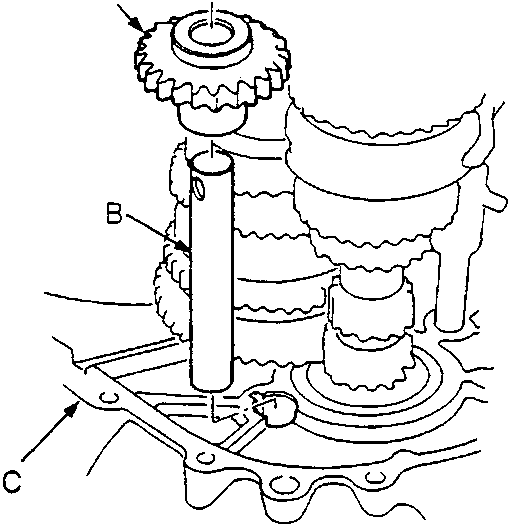

Diagram of reverse idler gear, reverse idler gear shaft, and clutch housing assembly
37M0290 A Reverse idler gear B Reverse idler gear shaft C Clutch housing

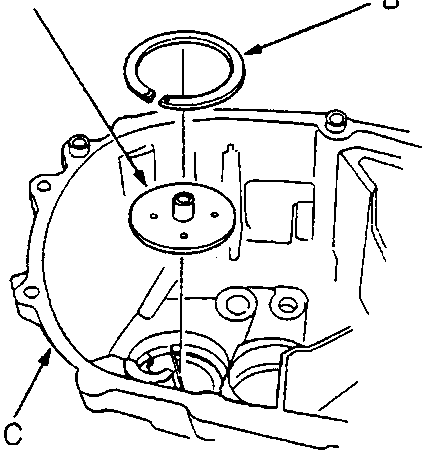

Diagram showing oil guide plate, thrust shim, and gearbox housing
37M0292 A Oil guide plate B Thrust shim C Gearbox housing
  1. Install the reverse idler gear and reverse idler gear shaft in the clutch housing.

Note: Select the thrust shim according to the measurements made in Mainshaft thrust shim – adjustment.

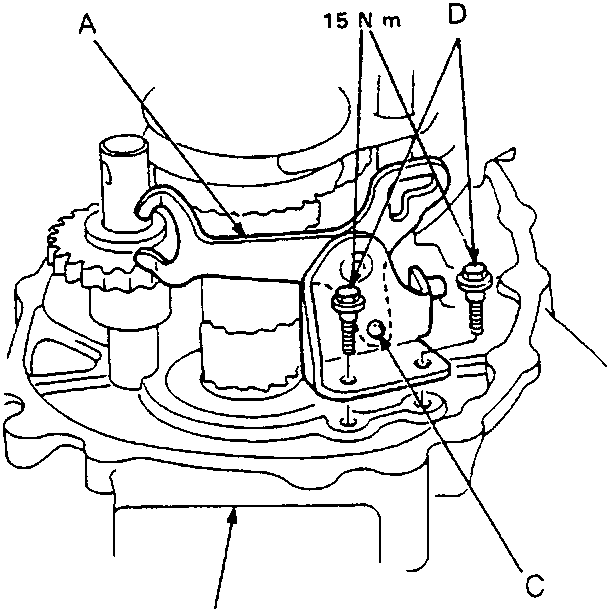

Diagram of reverse shift fork installation with retaining bolts and steel ball
37M0291 A Reverse shift fork B Clutch housing C Steel ball D Retaining bolts
  1. Install the reverse shift fork in the clutch housing with the 5th/reverse shift piece pin positioned in the slot of the reverse shift fork.

Note: Check that the steel ball is in the proper position.

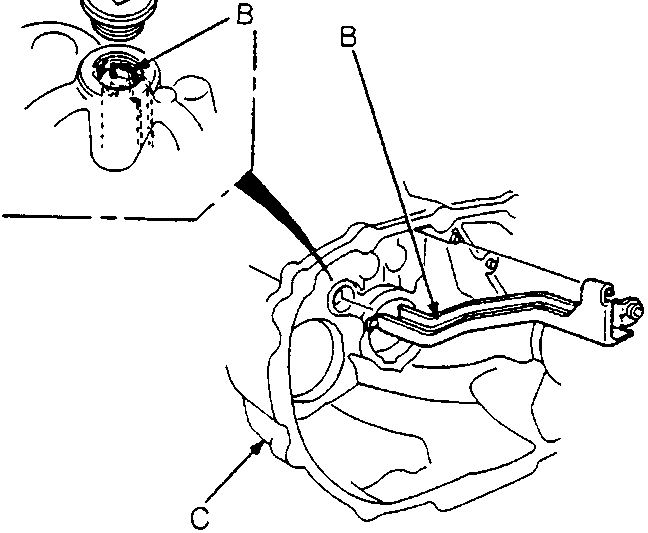

Diagram of sealing bolt, oil gutter plate, and gearbox housing
37M0293 A Sealing bolt B Oil gutter plate C Gearbox housing
  1. Install the oil gutter plate in the gearbox housing.

Note: Bend the hook of the oil gutter plate into the hole on the gearbox housing.
