Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition07 · Manual gearbox
07 · Transmission

Original page (page 9 of 13)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Manual gearboxOriginal page · page 9 of 13

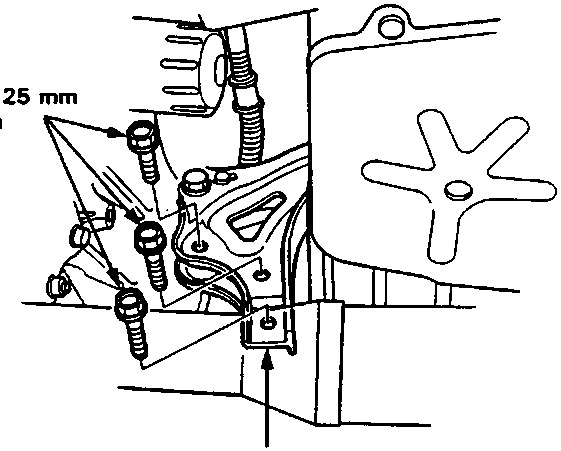

Diagram showing rear engine mount bracket with mounting bolts A and label B, annotated with dimensions 12 x 1.25 mm and torque 55 N m, figure number 37M0305

A Mounting bolts

B Rear engine mount bracket

  1. Install the three rear engine mount bracket mounting bolts using new bolts.

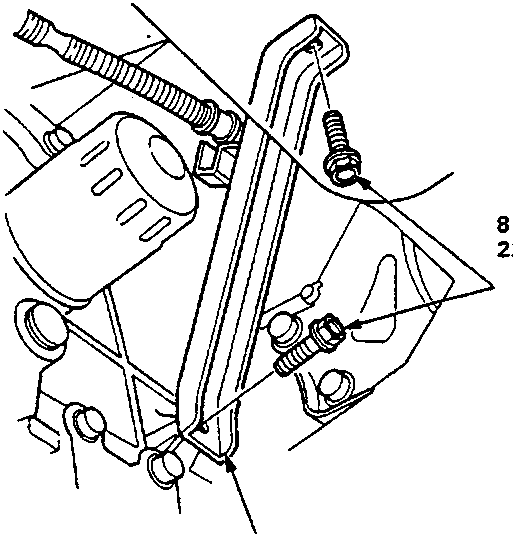

Diagram showing intake manifold stay A, annotated with dimensions 8 x 1.25 mm and torque 22 N m, figure number 37M0306

A Intake manifold stay

  1. Install the intake manifold stay.

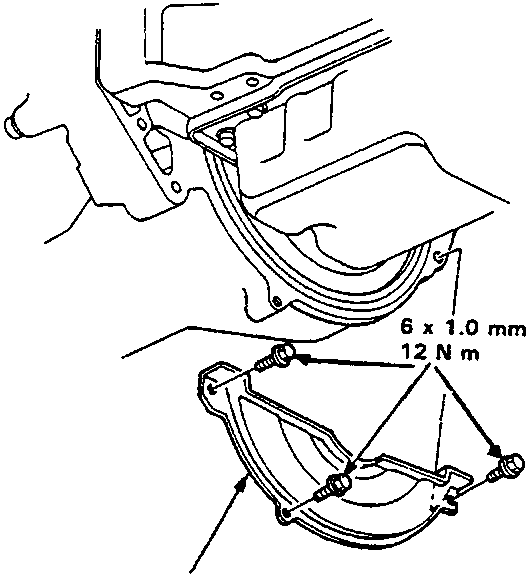

Diagram showing clutch case cover A, annotated with dimensions 6 x 1.0 mm and torque 12 N m, figure number 37M0307

A Clutch case cover

  1. Install the clutch case cover.

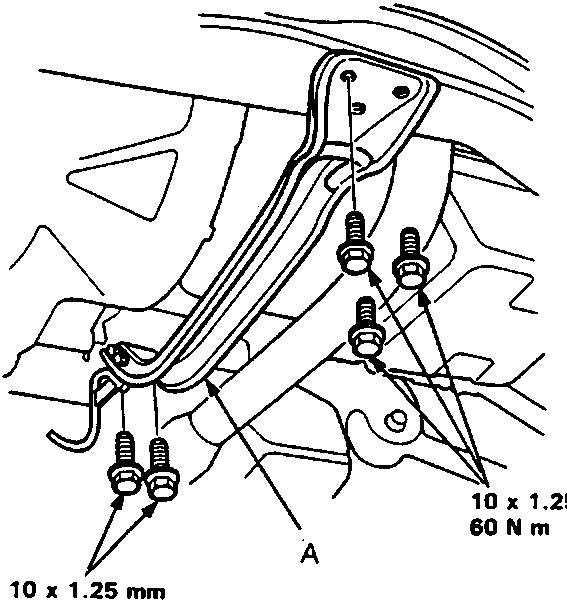

Diagram showing centre beam A, annotated with dimensions 10 x 1.25 mm and torque 60 N m, figure number 37M0308

A Centre beam

  1. Install the centre beam.
