37M0279 (page 2 of 2)

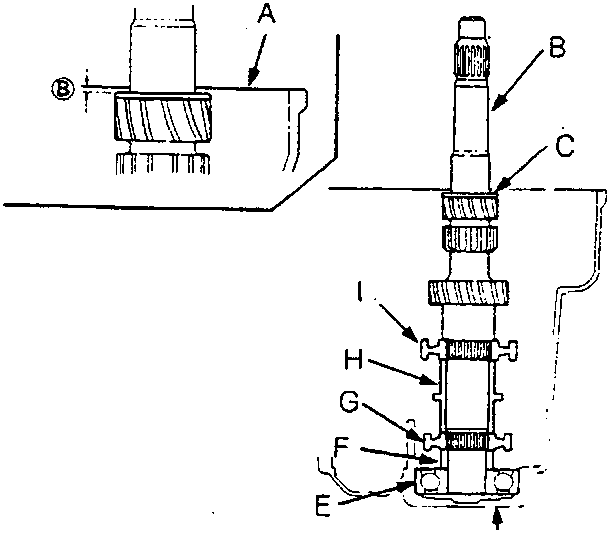

37M0281

• A End of gearbox housing
• B Mainshaft
• C Washer
• D Gearbox housing
• E Ball bearing
• F Spacer collar
• G 5th Synchro hub
• H Spacer collar
• I 3rd/4th Synchro hub

2. Install the 3rd/4th synchro hub, spacer collars, 5th synchro hub, and ball bearing on the mainshaft, then install the above assembly in the gearbox housing.
3. Install the washer on the mainshaft.
4. Measure instance B between the end of the gearbox housing and washer.

Note:

• Use a straight edge and vernier caliper.
• Measure at three locations and average the reading.

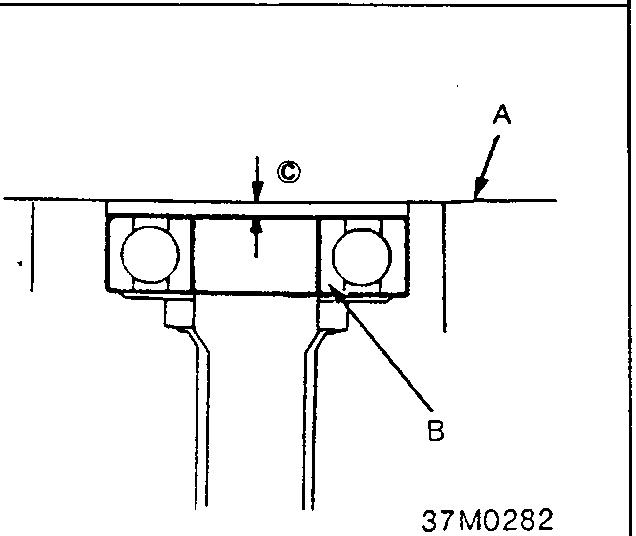

37M0282

• A End of clutch housing
• B Inner race of ball bearing

5. Measure distance C between the end of the clutch housing and bearing inner race.

Note:

• Use a straight edge and depth gauge.
• Measure at three locations and average the readings.

6. Select the proper 78 mm thrust shim from the chart by using the formula below.

Note: Use only one 78 mm thrust shim.

Shim Selection Formula:
From the measurements made in steps 4 and 5:
– 1. Add distance C (step 5) to B (step 4).
– 2. From this number, subtract 0.93 (which is the mid – point of the flex range of the clutch housing bearing spring washer).
– 3. Take this number and compare it to the available shim sizes in the chart.
