Manual gearboxInspection · page 3 of 3

Before assembling, clean all parts in solvent, dry them with compressed air, then coat them with clean oil.

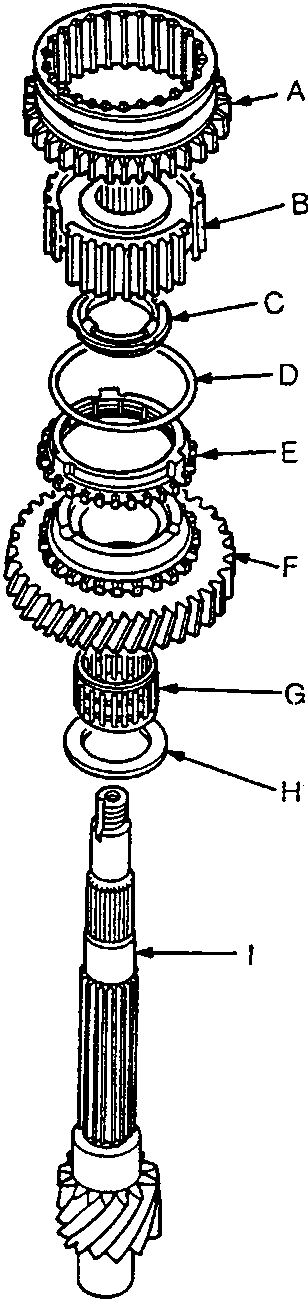

Exploded view of the input shaft components including reverse gear, synchro hub, friction damper, synchro spring, synchro ring, 1st gear, needle bearing, thrust shim, and countershaft.

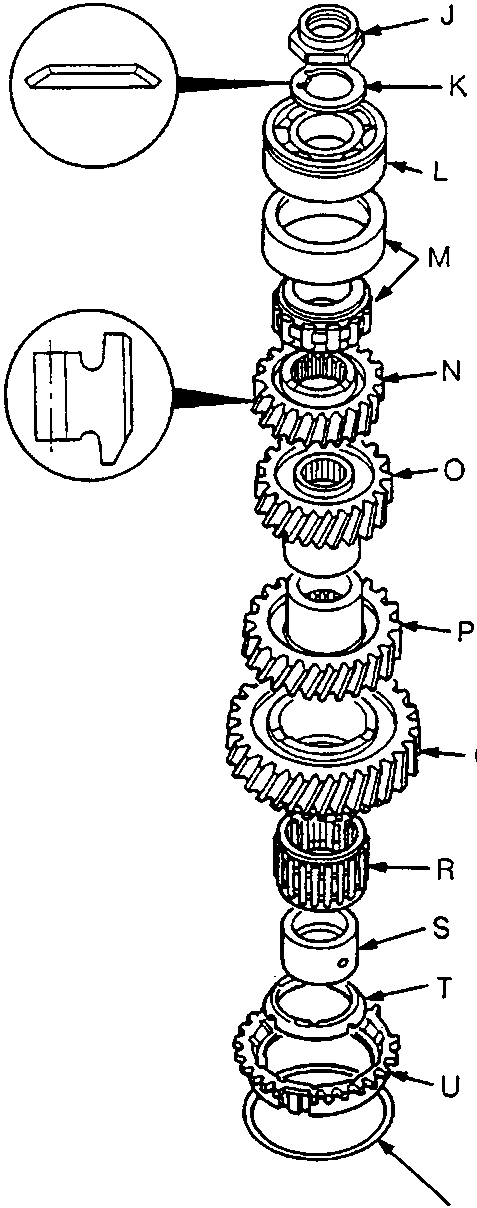

Exploded view of the mainshaft components including locknut, spring washer, ball bearing, needle bearing, 5th gear, 4th gear, 3rd gear, 2nd gear, spacer collar, friction damper, synchro ring, and synchro spring.

37M0251

AReverse gearICountershaftQ2nd Gear
B1st/2nd Synchro hubJLocknut – replaceRNeedle bearing
CFriction damperKSpring washerSSpacer collar
DSynchro springLBall bearingTFriction damper
ESynchro ringMNeedle bearingUSynchro ring
F1st GearN5th GearVSynchro spring
GNeedle bearingO4th Gear
HThrust shimP3rd Gear
