Manual gearboxInspection · page 2 of 3

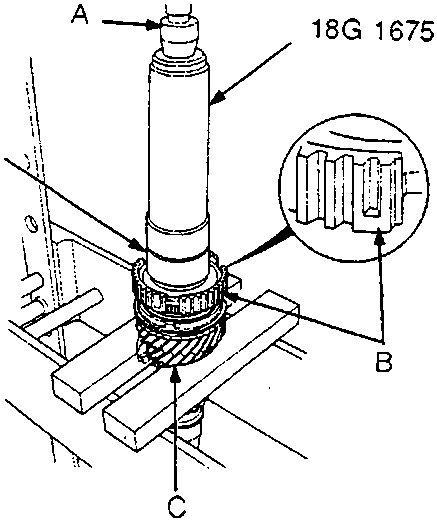

Diagram showing the installation of the 3rd/4th synchro hub onto the 2nd gear using a press and special tools 18G 1675 and 18G1676. Callouts A, B, C identify components.

A Press
B 3rd/4th Synchro hub
C 2nd Gear

  1. Support 2nd gear on steel blocks as shown, then install the 3rd/4th synchro hub using the special tools and a press as shown.

Note: After installing, check the operation of the 3rd/4th synchro hub set.

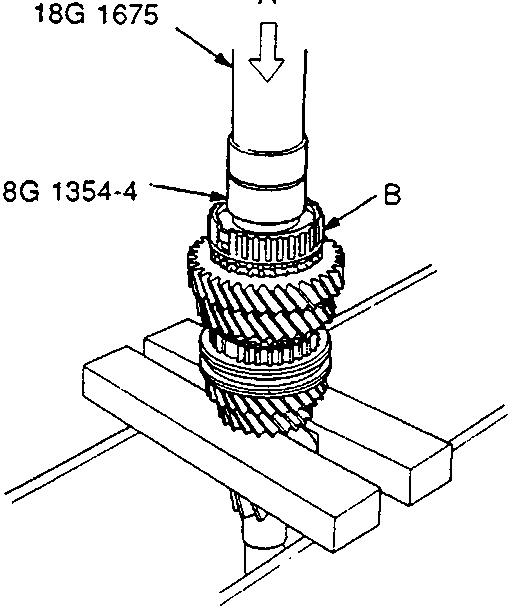

Diagram showing the installation of the 5th synchro hub onto the shaft using a press and special tool 18G 1354-4. Callouts A, B identify components.

A Press
B 5th Synchro hub

  1. Install the 5th synchro hub using the special tools and a press as shown.

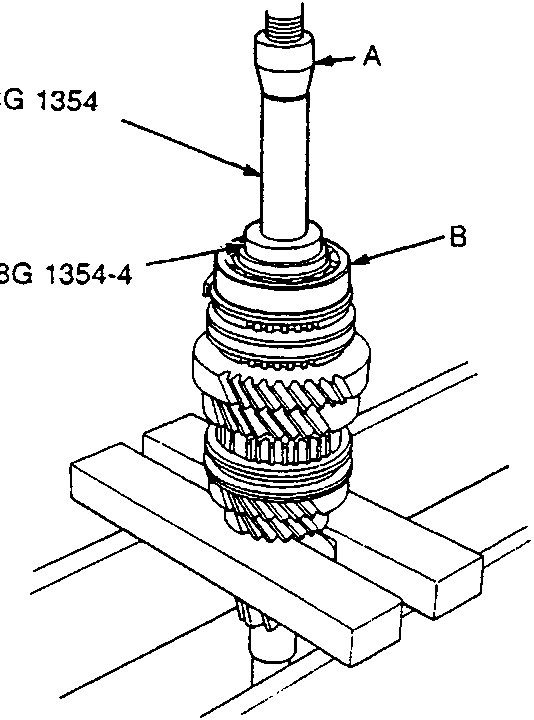

Diagram showing the installation of the ball bearing onto the gear assembly using a press and special tools 18G 1354 and 18G 1354-4. Callouts A, B identify components.

A Press
B Ball bearing

  1. Install the ball bearing using the special tools and a press as shown.
