Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition07 · Manual gearbox
07 · Transmission

37M0239 (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Manual gearbox37M0239 · page 2 of 2

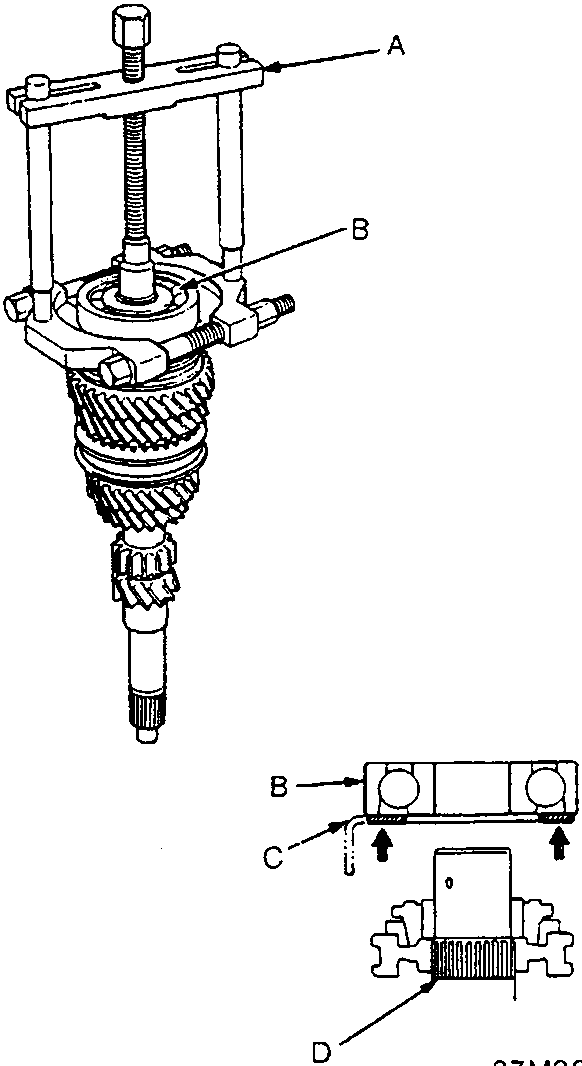

Diagram showing bearing puller, ball bearing, stopper ring and mainshaft assembly

A Bearing puller

B Ball bearing

C Stopper ring

D Mainshaft

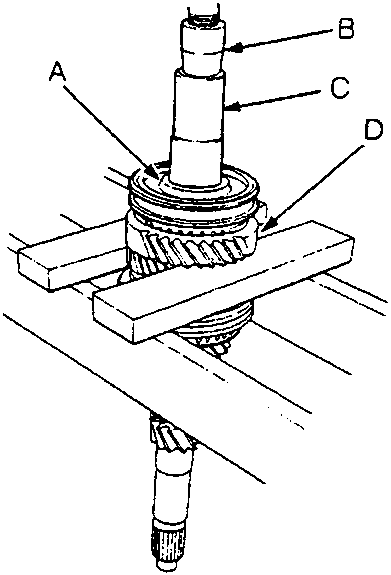

Diagram showing 5th synchro hub, press, attachment and 5th gear on steel blocks

A 5th Synchro hub

B Press

C Attachment

D 5th Gear

CAUTION: Remove the synchro hubs using a press and steel blocks as shown. Use of a jaw-type puller can damage the gear teeth.

  1. Remove the ball bearing using a bearing puller as shown.
  2. Support 5th gear on steel blocks as shown and press the shaft out of the 5th synchro hub.
