Reverse idler gear (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Manual gearboxReverse idler gear · page 2 of 2
Diagram of gearbox mainshaft and countershaft assembly being removed from clutch housing, with labels A through G pointing to specific components.

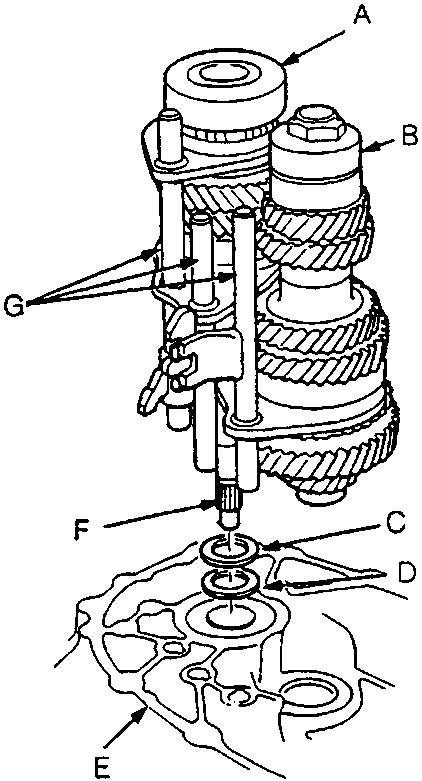

  1. Mainshaft assembly
  2. Countershaft assembly
  3. Washer
  4. Spring washer
  5. Clutch housing
  6. Tape the mainshaft spline
  7. Shift forks
  8. Remove the mainshaft and countershaft assemblies with the shift forks from the clutch housing.

Note: Tape the mainshaft spline before removing the mainshaft and countershaft assemblies.

Diagram showing differential assembly being lifted out of the gearbox casing.

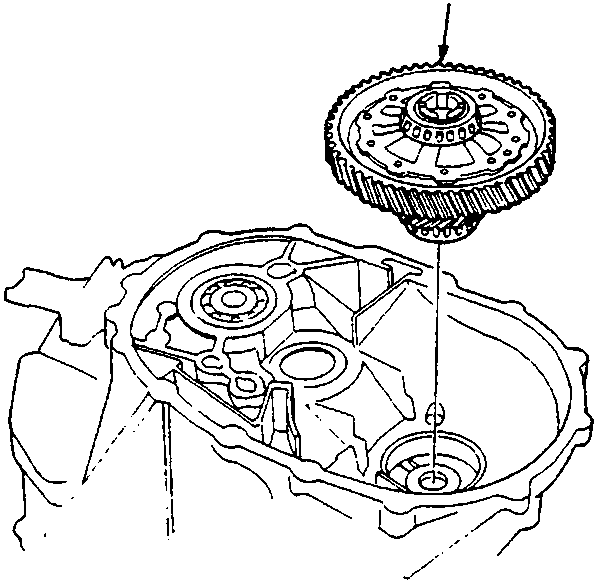

  1. Differential assembly
  2. Remove the differential assembly.
