Rover 800 Workshop Manual (1996-1999)19 · Steering
19 · Steering & suspension

Steering column components

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Description and operation › Steering column components
SteeringSteering column components

STEERING COLUMN COMPONENTS

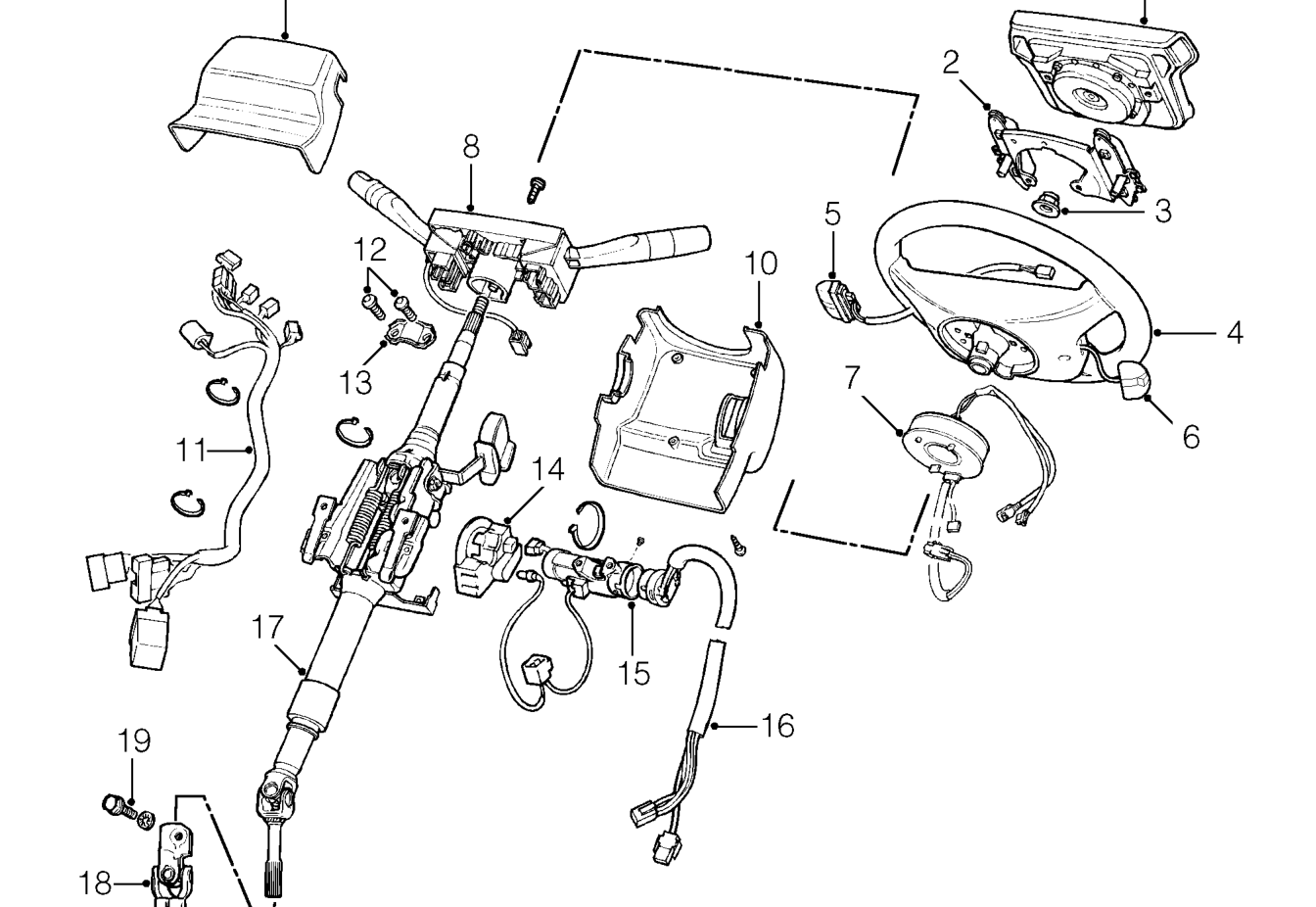

Steering column components
  1. Airbag
  2. Steering pad plate
  3. Steering wheel nut
  4. Steering wheel
  5. Cruise control set/res switch (if fitted)
  6. Radio remote control
  7. Rotary coupler
  8. Column switch
  9. Upper cowl
  10. Lower cowl
  11. Column harness
  12. Shear bolts
  13. Switch saddle
  14. Passive coil
  15. Ignition starter switch
  16. Ignition switch harness
  17. Steering column
  18. Universal joint
  19. Universal joint bolt
