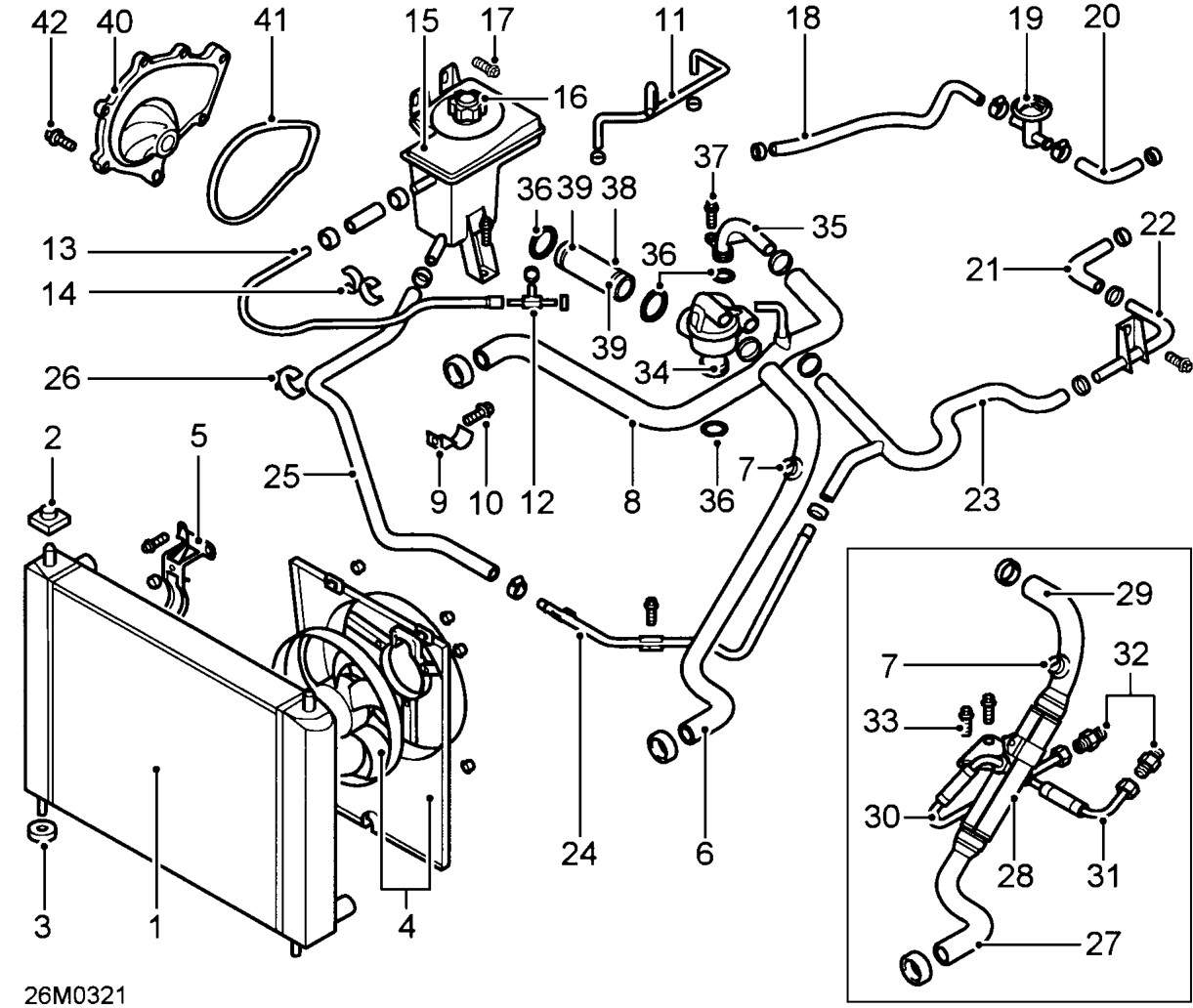

COOLING SYSTEM COMPONENTS

1. Radiator
2. Radiator mounting bush - upper
3. Radiator mounting bush - lower
4. Cooling fan and cowl - radiator
5. Cooling fan and cowl - condenser
6. Bottom hose - radiator to thermostat housing
7. Bleed screw
8. Top hose - engine to radiator
9. Support bracket - top hose
10. Flanged screw - M6 x 10
11. Bleed hose - cylinder block
12. ’T’ connector - bleed hoses
13. Hose - bleed hose to tank
14. Clip - bleed hose support
15. Expansion tank
16. Pressure relief cap
17. Flanged screw - M6 x 10
18. Hose - engine to coolant valve
19. Coolant valve - heater temperature control
20. Hose - coolant valve to heater inlet
21. Hose - heater outlet to pipe
22. Coolant pipe
23. Hose - pipe to thermostat and pipe
24. Coolant pipe
25. Hose - pipe to expansion tank
26. Clip - hose support

Continued.....
