Master cylinder components (Brakes)

Make

Rover

Model

800 Workshop Manual

Year

1996–1999

Section

Description and operation › Master cylinder components

BrakesMaster cylinder components

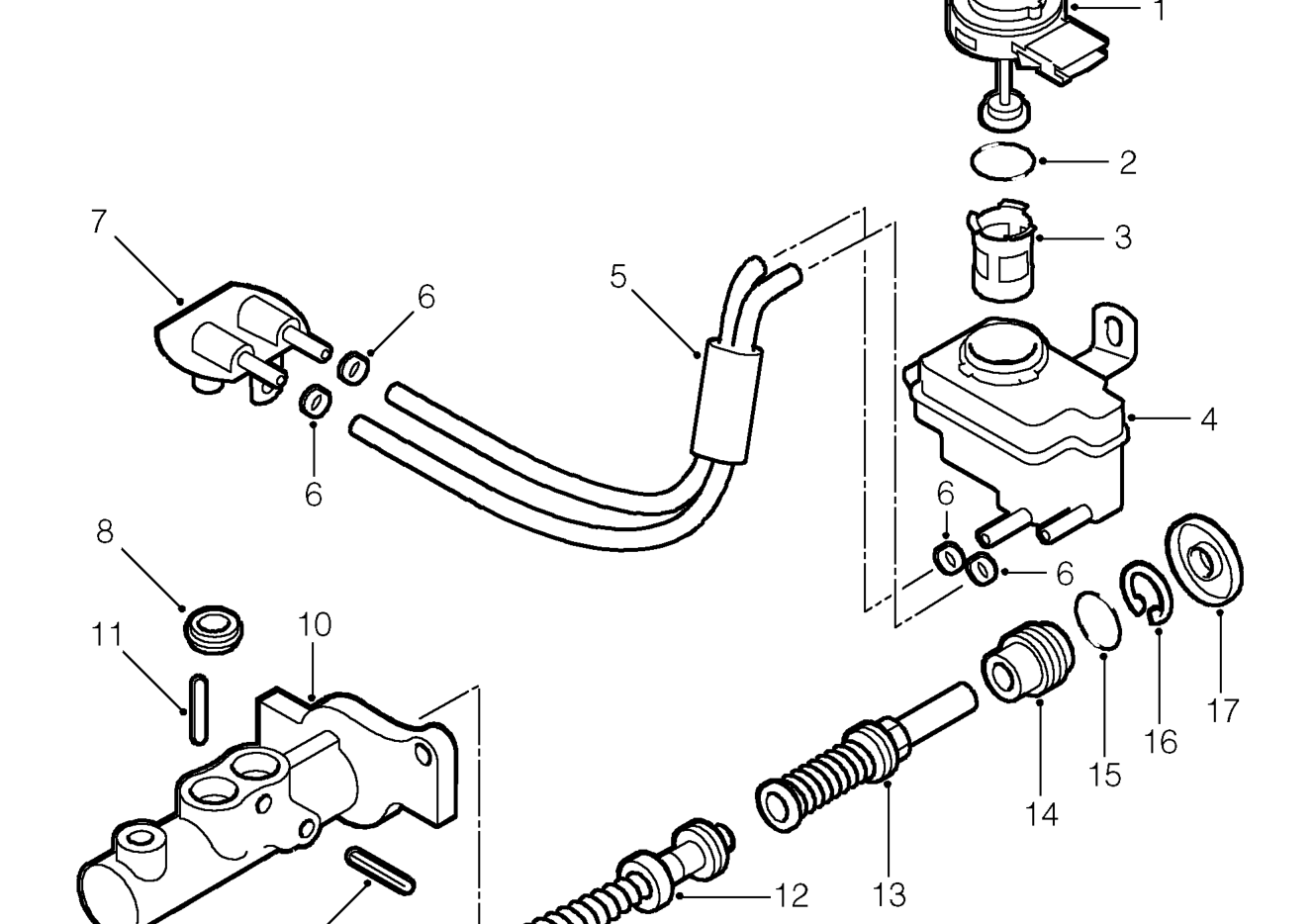

MASTER CYLINDER COMPONENTS

RH Steering with KV6 engine and manual gearbox

1. Reservoir cap and fluid level switch assembly
2. ’O’ ring - reservoir cap
3. Master cylinder filter
4. Brake fluid remote reservoir
5. Hoses - reservoir
6. Clips - 4 off
7. Master cylinder adaptor
8. Seal - 2 off
9. Roll pin - adaptor
10. Master cylinder body
11. Piston stop - secondary
12. Secondary piston assembly
13. Primary piston assembly
14. Piston guide
15. ’O’ ring
16. Circlip
17. Seal - push rod
