BrakesLH Steering with KV6 engine and Diesel models

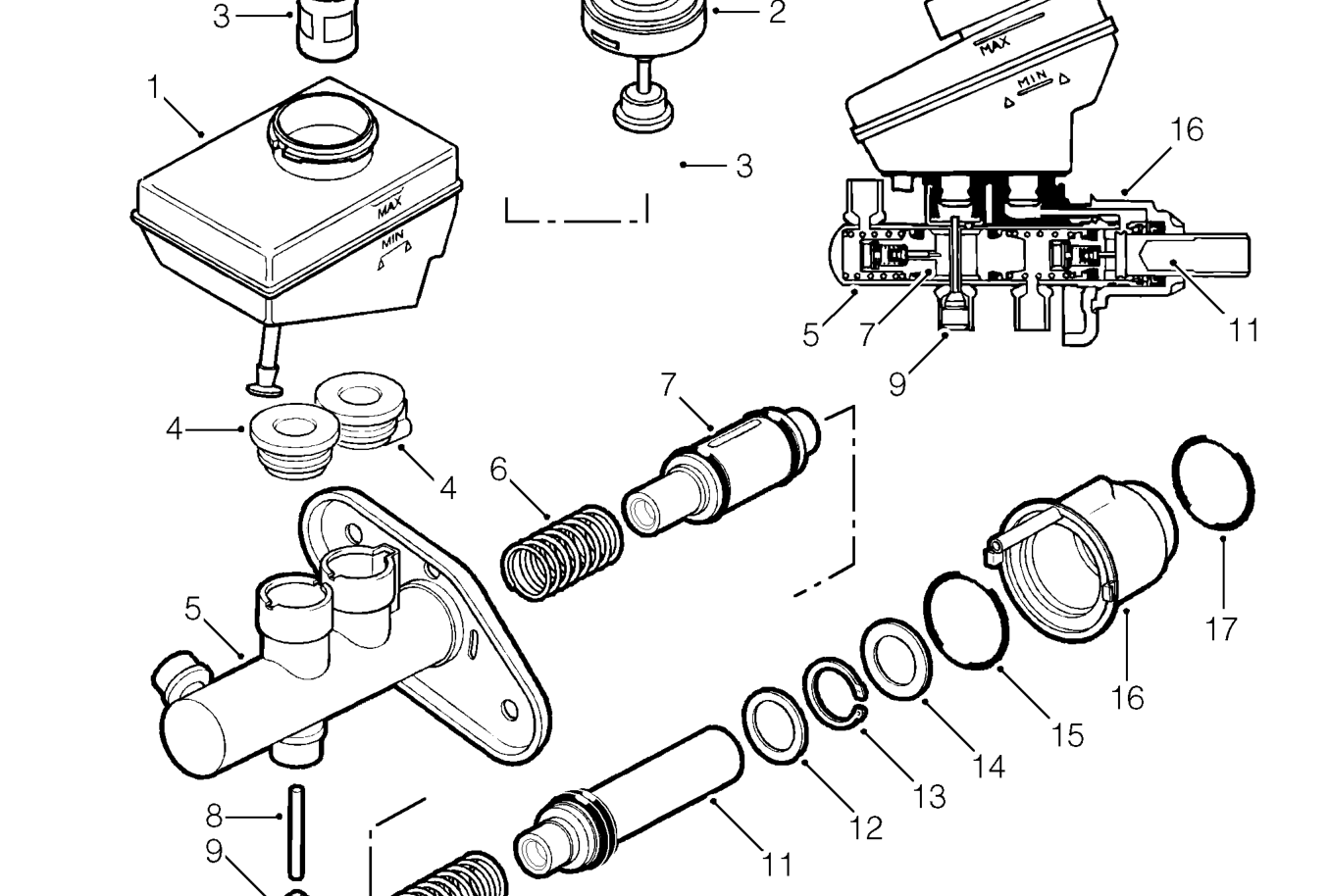

LH Steering with KV6 engine and Diesel models

1. Brake and clutch fluid reservoir
2. Cap and fluid level switch assembly
3. Cap seal and strainer
4. Reservoir seal - 2 off
5. Brake master cylinder
6. Secondary spring
7. Secondary plunger assembly
8. Stop pin - secondary plunger
9. Retaining plug - stop pin
10. Primary spring
11. Primary plunger assembly
12. Spacing washer
13. Circlip
14. Backing washer - vacuum seal
15. ’O’ ring - master cylider
16. Transfer housing and vacuum seal
17. ’O’ ring - transfer housing
