Rover 800 Workshop Manual (1996-1999)06 · Engine - T Series
06 · Engine

Inlet camshaft rear oil seal

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Inlet camshaft rear oil seal
Engine - T SeriesInlet camshaft rear oil seal

INLET CAMSHAFT REAR OIL SEAL

Service repair no - 12.13.10

Remove

  1. Disconnect battery earth lead.

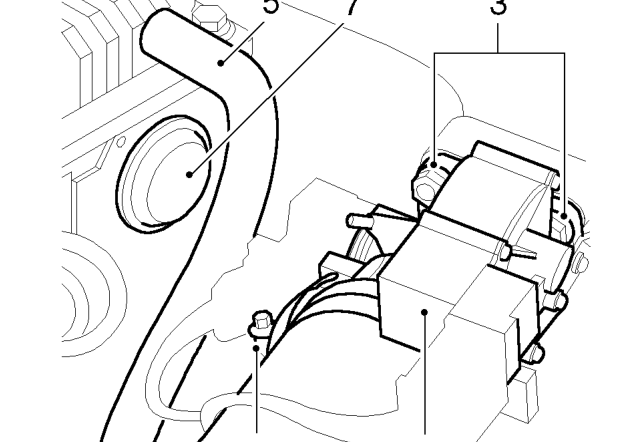

Inlet camshaft rear oil seal – Disconnect battery earth lead.
  1. Loosen screw securing air intake hose to throttle housing and disconnect hose.
  2. Remove 4 nuts securing throttle housingto inlet manifold chamber.
  3. Release throttle housing from inlet manifold chamber and place aside.
  4. Disconnect breather hose from camshaft cover.
  5. Position cloth beneath oil seal to absorb any oil spillage.
  6. Using as suitable lever, remove oil seal and discard.

Refit

  1. Clean oil seal recess and camshaft.

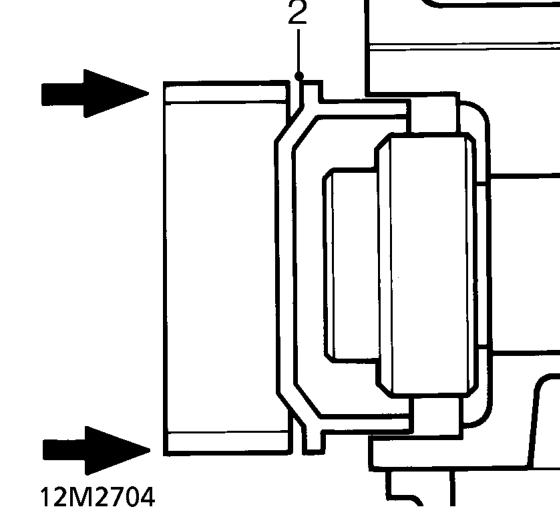

Inlet camshaft rear oil seal – Clean oil seal recess and camshaft.
  1. Fit oil seal.

CAUTION: Use a flat drift positioned across seal to prevent damaging seal when fitting.

  1. Remove cloth.
  2. Connect breather hose to camshaft cover.
  3. Clean throttle housing mating faces.
  4. Fit throttle housing, fit nuts and tighten to 7 Nm.
  5. Connect intake hose to throttle housing and tighten hose clip.
  6. Connect battery earth lead.
