Rover 800 Workshop Manual (1996-1999)06 · Engine - T Series
06 · Engine

Exhaust camshaft rear oil seal

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Exhaust camshaft rear oil seal
Engine - T SeriesExhaust camshaft rear oil seal

EXHAUST CAMSHAFT REAR OIL SEAL

Service repair no - 12.13.08

Remove

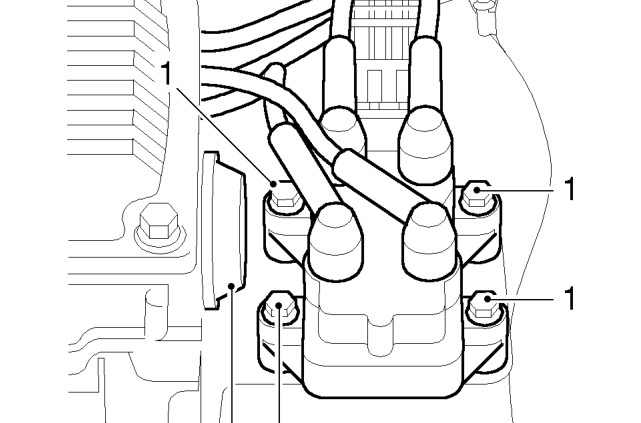

Exhaust camshaft rear oil seal – Service repair no - 12.13.08
  1. Remove 4 nuts and bolts securing ignition coil to mounting bracket and move aside.
  2. Position cloth below oil seal to absorb any oil spillage.
  3. Using a suitable lever, remove oil and discard.

Refit

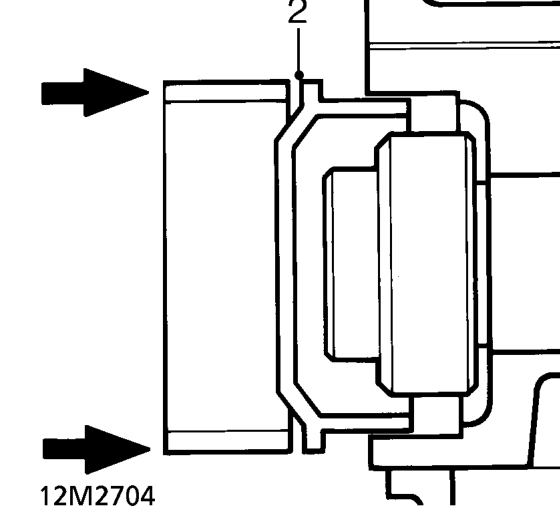

Exhaust camshaft rear oil seal – Using a suitable lever, remove oil and discard.
  1. Clean oil seal recess and camshaft.
  2. Fit camshaft oil seal.

CAUTION: Use a drift position across seal to prevent damaging seal when fitting.

  1. Remove cloth.
  2. Position ignition coil to mounting bracket, fit bolts and nuts and tighten to 9 Nm.
