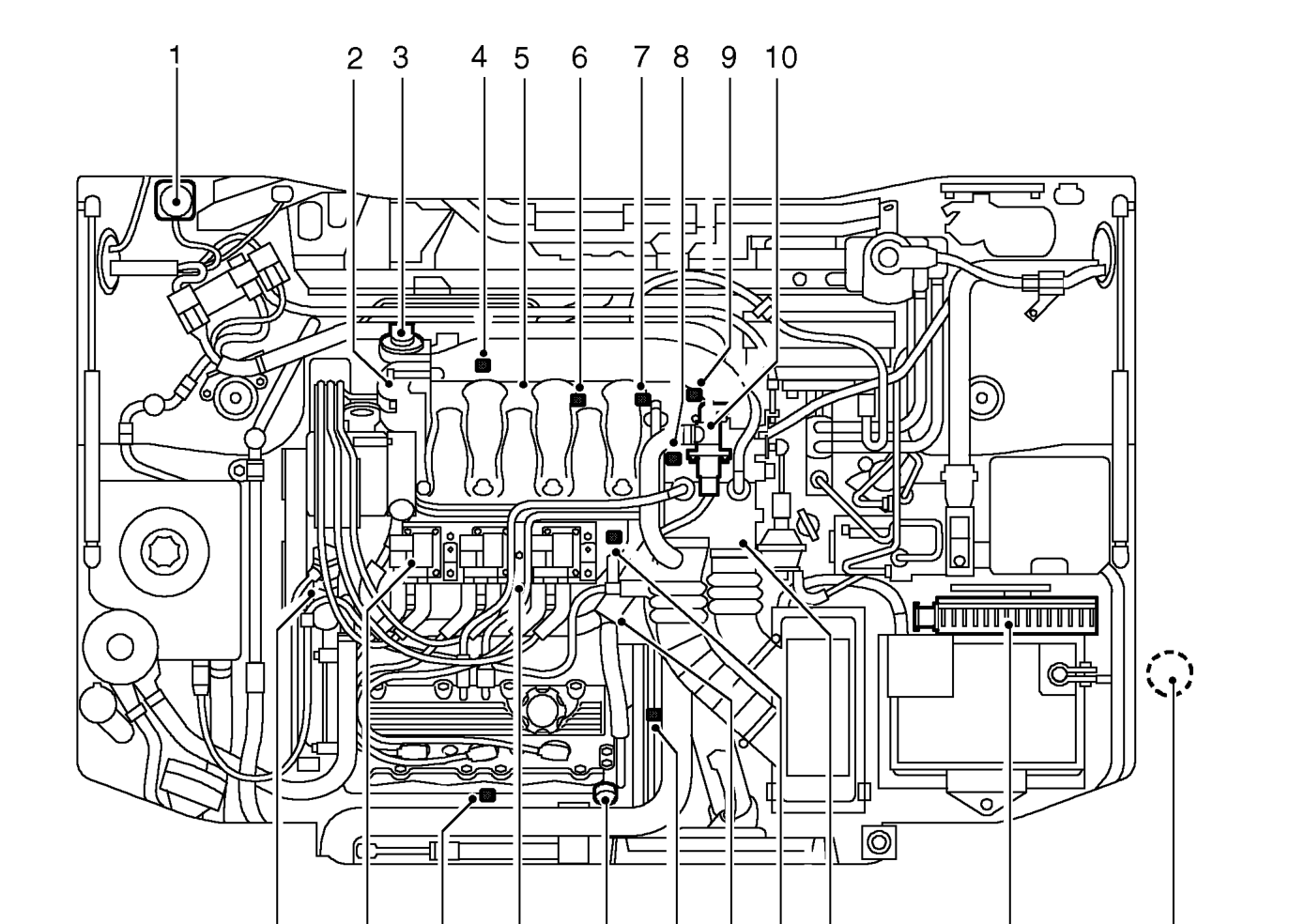

ENGINE COMPARTMENT COMPONENT LOCATIONS - KV6

1. Inertia switch
2. VIS balance valve
3. Manifold pressure sensor (MAP)
4. Oxygen sensors
5. Injectors
6. Fuel temperature sensor
7. Fuel pressure regulator
8. Throttle position sensor
9. Crankshaft position sensor (CKP)- Manual gearbox
10. Idle air control valve (IAC)
11. Oil temperature sensor
12. Ignition coils - dual
13. Camshaft position sensor
14. Crankshaft position sensor (CKP) - Automatic gearbox
15. Inlet air temperature sensor (IAT)
16. Coolant temperature sensor (ECT)
17. VIS connect valve
18. ECM - MEMS2J
19. Purge control valve and charcoal canister
