Engine management system - MEMS (Fuel system): Description and operation

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Description and operation › Fuel system
Engine management system - MEMSFuel system

FUEL SYSTEM

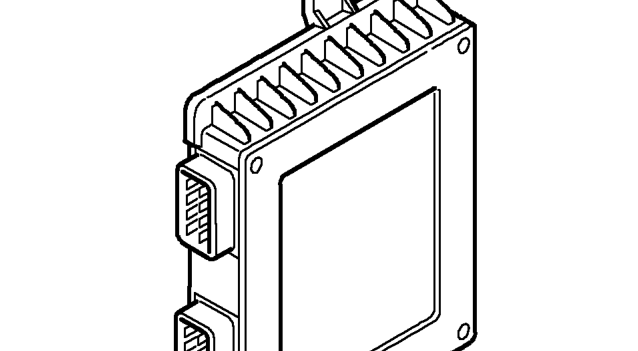

Engine control module (ECM)

Engine control module (ecm)

The Modular Engine Management System (MEMS) is controlled by the Electronic Control Module (ECM) which is located behind the battery in the engine compartment.

INPUTS
Camshaft position sensor - KV6 Manifold absolute pressure sensor Coolant temperature sensor Intake air temperature sensor Oil temperature sensor - KV6 Oxygen sensors Throttle position Crankshaft position sensor Fuel rail temperature sensor Vehicle speed sensor Anti-theft control unit Starter signal Diagnostic input Battery supply Power earth Sensor earth Knock sensor - ’T’ series
ECM

The ECM is an adaptive unit and can learn the load and wear characteristics of the engine it controls.

The ECM remembers and updates two main engine requirements when the engine is running at normal operating temperature:

  1. The position of the idle air control (IAC) valve on KV6 engines or the stepper motor on ’T’ series engines, to achieve the specified idle speed. This position is used as a reference for IAC valve or stepper motor movement to achieve idle speed under all conditions.
  2. The fuelling change or offset required to achieve a set oxygen sensor voltage. Fuelling is adjusted around a step in the oxygen sensor output. This allows the system to provide the correct fuelling without having to apply excessive adjustments to the fuelling which can adversely affect the emissions and driveability.

NOTE: After fitting a different ECM, TestBook will be required to reprogramme the ECM with the code from the anti-theft control unit and to perform a full engine tune procedure to initialise adopted values.

The ECM inputs and outputs are shown in the following table:

OUTPUTS
Ignition coils Injectors Idle air control valve - KV6 Connect valve - VIS - KV6 Balance valve - VIS - KV6 Automatic control unit - EAT - KV6 Stepper motor - ’T’ series Fuel pump relay (inside relay module) Main relay (inside relay module) Cooling fans Oxygen sensor heater relay Diagnostic output - TestBook Air conditioning trinary switch Cruise control relay - KV6 Cruise control ECU - KV6 Purge control valve Boost control valve - T series (Turbo) Tachometer
