Air conditioning system components - KV6 engine
- Make
- Rover
- Model
- 800 Workshop Manual
- Year
- 1996–1999
- Section
- Description and operation › Air conditioning system components - KV6 engine
Air conditioningAir conditioning system components - KV6 engine

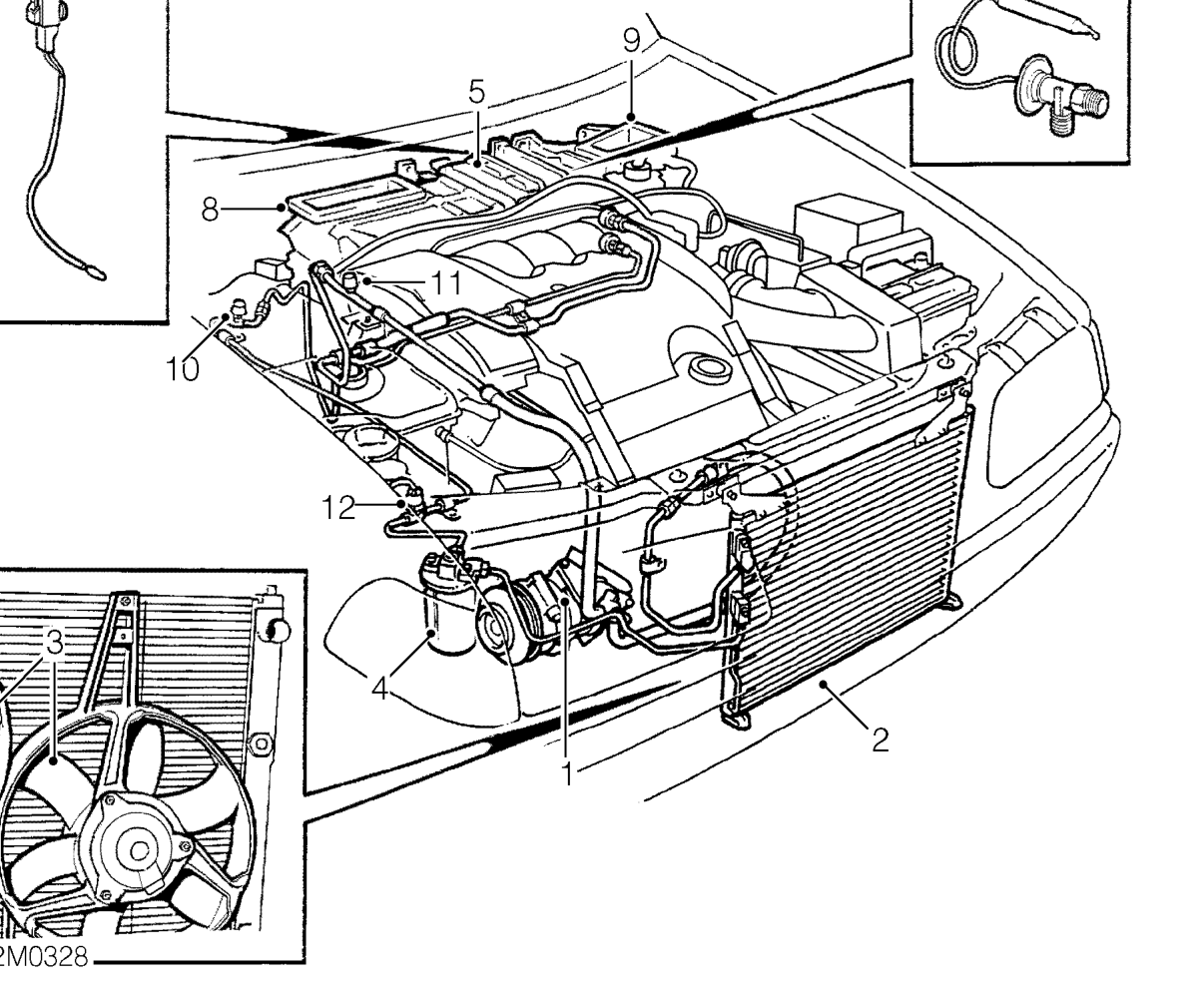

AIR CONDITIONING SYSTEM COMPONENTS - KV6 ENGINE
- Compressor
- Condenser
- Cooling fans, behind radiator
- Receiver/drier
- Evaporator
- Thermostatic expansion valve
- Evaporator temperature thermistor
- Heater distribution and blend unit
- Blower unit
- High pressure servicing connection
- Low pressure servicing connection
- Trinary pressure switch
