Motor - tilt - front seat (page 2 of 2)

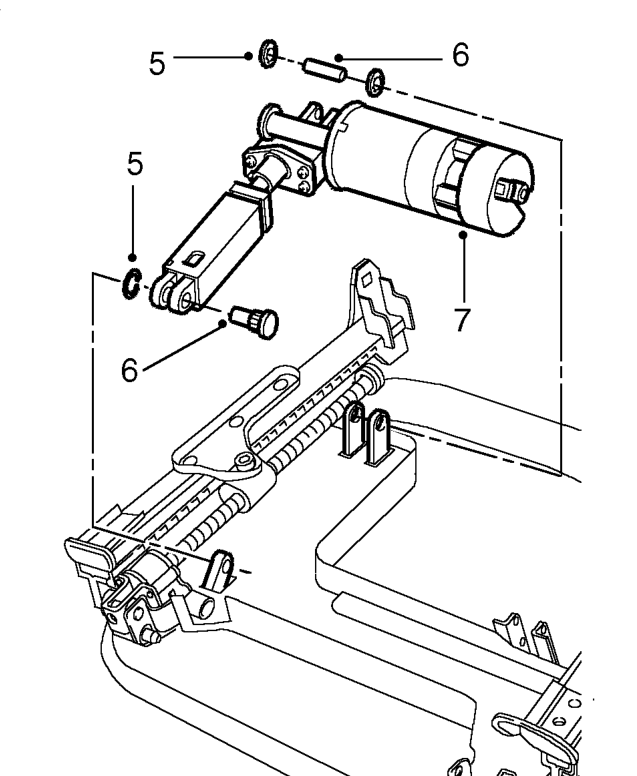

5. Remove 2 retainers and ’C’ clip from pins securing tilt motor.
6. Using a suitable drift remove pins securing motor and operating lever to seat frame.
7. Remove motor.

Refit

1. Position and align motor to seat frame.

CAUTION: Ensure motor support brackets are not damaged when roll pins are fitted.

2. Fit New roll to secure motor and operating arm.
3. Fit NEW retainers and ’C’ clip to pins.
4. Connect multiplugs to motor.
5. Position ECU to seat and connect multiplug.
6. Fit front seat. See this section.
