BodyRH underbelly panel - diesel

RH UNDERBELLY PANEL - DIESEL

Service repair no - 76.10.43

Remove

  1. Remove underbelly panel. See this section.

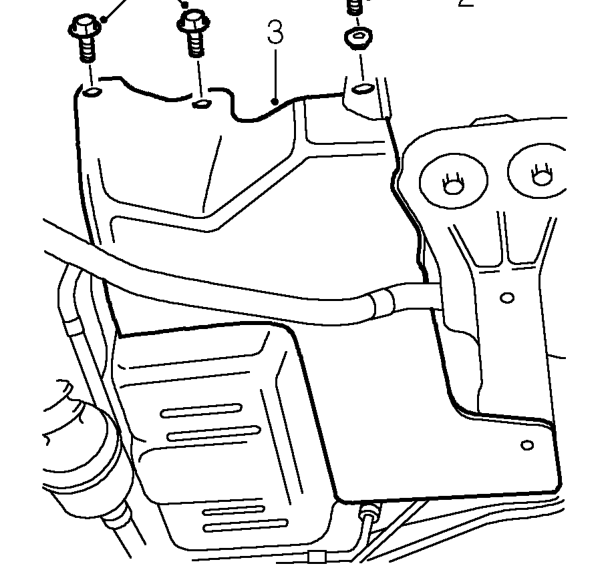

Rh underbelly panel - diesel – Remove underbelly panel. See this section.
  1. Remove 3 screws securing RH underbelly panel and collect spacer from front screw.
  2. Remove RH underbelly panel.

Refit

  1. Fit underbelly panel.
  2. Fit and tighten screws securing under underbelly panel, fitting spacer to front screw.
  3. Fit underbelly panel. See this section.

UNDERBELLY PANEL

Service repair no - 76.10.50

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

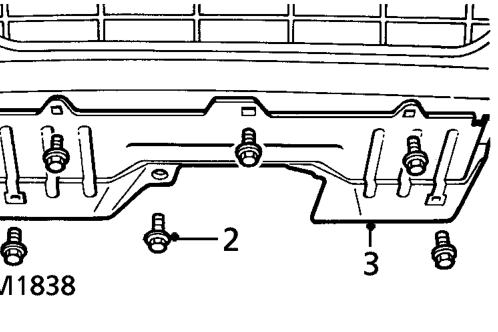

Underbelly panel – Raise front of vehicle.
  1. Remove 6 bolts securing underbelly panel.
  2. Remove underbelly panel.

Refit

  1. Position underbelly panel and secure with bolts.
  2. Remove stand(s) and lower vehicle.
