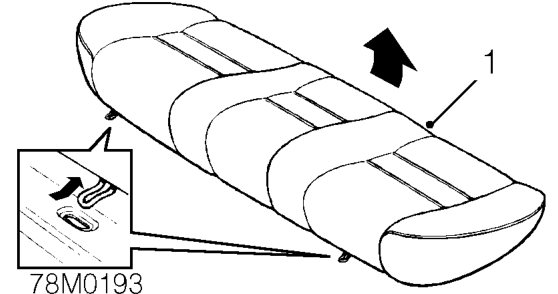

Rear seat cushion - Coupe

REAR SEAT CUSHION - COUPE

Service repair no - 78.10.17/99

Remove

1. Release cushion from under squab.
2. Remove cushion.

Refit

1. Position cushion and locate floor clips.
2. Ensuring seat belt buckles are not trapped, locate rear of cushion under squab.

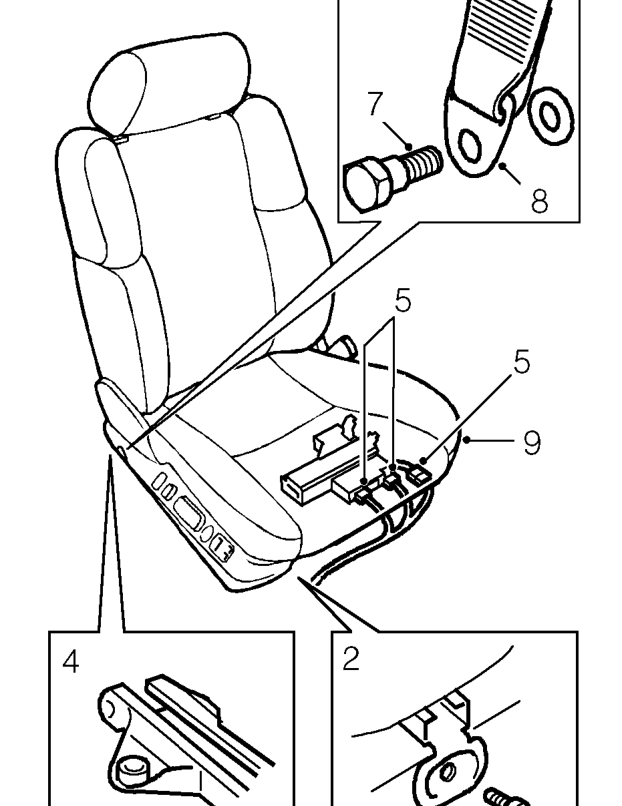

FRONT SEAT

Service repair no - 78.10.44/99

Remove

Driver’s electric seat with memory illustrated

1. Move seat to rearmost position.
2. Remove 2 TX50 screws securing front of seat runners.
3. Move seat forwards.
4. Remove 2 TX50 screws securing rear of seat runners.
5. Electric seat: Disconnect seat control multiplugs.
6. Lift rear of seat from its fitted position.
7. Remove bolt securing seat belt anchorage to seat frame.
8. Extract seat belt from seat valance.
9. Remove front seat assembly.
